Recombinant Fluc protein (Km = 2.06 μM )

用 AkaLumine HCl 处理的 LLC/luc 和 MDA-MB-231/luc 细胞中的信号在较低浓度 (2.5 μM) 时达到峰值，而 D-荧光素和 CycLuc1 在较高剂量下产生更多的生物发光。上升，即使在 250 μM 时也没有达到最大信号 [1]。

AkaLumine 盐酸盐显示来自肺转移的信号显着升高，与 D-荧光素给药相比增强了 8.1 倍。为了评估 AkaLumine HCl 在检测深部组织靶点方面相对于 CycLuc1 的优越性，以 5 mM 剂量（最大剂量）静脉注射 LLC/luc 细胞 15 分钟后，AkaLumine HCl 和 CycLuc1 处理的小鼠的生物发光 比较图像 CycLuc1 的浓度由于其水溶性较低，因此其含量较高。与 CycLuc1 相比，AkaLumine 盐酸盐对播散性肺癌细胞的检测灵敏度提高了 3.3 倍。通过按照 CycLuc1 和 AkaLumine 盐酸盐的顺序腹腔注射 5 mM 底物，并以相反的顺序每 8 小时注射一次，对具有肺转移的相同小鼠进行成像，进一步验证了 AkaLumine 盐酸盐的优越性。成像。与 CycLuc1 相比，AkaLumine 盐酸盐的肺转移信号增加了约四倍 [1]。

---

可在小鼠体内实现高灵敏度的深部组织成像。将AkaLumine腹腔注射到小鼠体内后，其可与荧光素酶反应，产生的近红外生物发光能够穿透组织，使深部组织如大脑和腹部器官等结构清晰成像，为无创监测活体动物体内生物过程提供了有力工具[1]

生物发光发射光谱的测量[1]
使用ATTO AB-1850分光光度计测量d-荧光素、CycLuc1和AkaLumine-HCl的生物发光发射光谱。通过将5 μl基质（100 μM），5 μl QuantiLum重组萤光素酶溶液（1 毫克 ml−1）和5 μl磷酸钾缓冲液（500 mM、pH 8.0）。然后通过注射10 μl ATP Mg（200 μM）加入反应混合物中。生物发光发射光谱在1 nm从400增加到780 nm使用3 最小积分时间。[1]

---

K m值的测量[1]
除底物浓度外，在与生物发光光谱测量相同的条件下测量d-荧光素、CycLuc1和AkaLumine HCl的生物发光强度。基质的最终浓度在0.2到500之间变化 μM和0.1至100 μM。底物的Km和Vmax值由生物发光强度的积分值确定，并使用市售SigmaPlot 9.0软件包中的酶动力学向导通过Lineweaver–Burk图计算。

使用生物组织的生物发光透射测定[1]
用IVIS Spectrum 1测量来自孔的生物发光信号 基质后分钟（最终浓度为2.5 μM，对于d-葡糖苷和AkaLumine HCl，50 CycLuc1的nM）与重组Fluc蛋白（20 μg ml−1）在ATP Mg（最终浓度为20 μM）在黑色96孔板中。将生物组织（4mm厚的牛肉片）放置在孔上，以测量通过组织的生物发光信号，然后通过两层生物组织获取生物发光图像。以下条件用于图像采集：曝光时间=10 s、 装仓=中等：8，视野=12.9×12.9 并且f/stop＝1。通过IVIS系统专用的Living Image 4.3软件（PerkinElmer）分析生物发光图像。穿透效率（%）是通过将牛肉覆盖井的信号强度除以相应的未覆盖井的那些信号强度来计算的。[1]

---

稳定表达luc报告基因的癌症细胞系的分离[1]
小鼠肺癌细胞LLC、人乳腺癌症细胞MDA-MB-231和人癌症细胞PC-3从ATCC获得。LLC/luc和MDA-MB-231/luc细胞在用质粒pEF/luc转染后通过磷酸钙法分离，如先前所述19，20。PC-3/κB-luc也如先前所述被分离21。细胞维持在37 °C的5%FCS-DMEM（Nacalai Tesque，Kyoto，Japan）中添加青霉素（100单位/ml）和链霉素（100 μg ml−1），并通过支原体检查试剂盒定期检查支原体污染。对于每个实验，所有细胞系都被独立地存储并每次从原始库存中回收。[1]

---

体外BLI[1]
底物在黑色96孔板中与LLC/luc或MDA-MB-231/luc细胞（4×105个细胞/孔）反应。使用IVIS Spectrum 1测量生物发光 分钟后加入基质。以下条件用于图像采集：对总生物发光开放或680±10 用于近红外生物发光的发射滤光片的nm，暴露时间=10 s、 装仓=中等：8，视野=12.9×12.9 cm和f/stop＝1。通过IVIS系统专用的Living Image 4.3软件对生物发光图像进行分析。

Tumour models
For subcutaneous tumour models, LLC/luc (3 × 105 cells per 10 μl) or PC-3/κB-luc (1 × 106 cells per 10 μl) suspended in PBS was mixed with an equal volume of Geltrex and subcutaneously or intratibially injected into C57B/6 albino mice (female) or severe combined immunodeficient mice (male), respectively. The experiments were performed 4 days after engraftment. For a model with disseminated cancer cells in the lung, C57B/6 albino mice (male) were intravenously injected with LLC/luc (1 × 105 cells per 100 μl PBS) 15 min before in vivo BLI. For lung metastasis model, LLC/luc (5 × 105 cells per 100 μl) suspended in PBS was injected from tail vein of C57B/6 albino mice (male). The experiments were performed 10–20 days after intravenous injection. These tumour models are well established and tumour growth is stable. Therefore, six samples are adequate sample size for evaluation of tumour growth in each experiment.

---

In vivo BLI
Bioluminescence images of subcutaneous tumours were acquired with IVIS Spectrum 15 min (unless otherwise indicated) after intraperitoneal injection with indicated amount of the substrates. As bioluminescence intensities from lung metastasis peaked at various time after a substrate injection, bioluminescence images of lung metastasis were sequentially acquired with IVIS Spectrum every 3 min for 30 min after intraperitoneal injection with the substrates and the highest bioluminescence intensities among the acquired images were selected for analysis. For comparing bioluminescence production between different substrates using the same mice, the images for AkaLumine-HCl were acquired 4 and 8 h after injection of d-luciferin and CycLucl, respectively. The following conditions were used for image acquisition: open emission filter, exposure time=60 s, binning=medium: 8, field of view=12.9 × 12.9 cm and f/stop=1. For three-dimensional BLI in lung metastasis model, a mouse injected with AkaLumine-HCl was subjected to BLI with three different wavelengths (660±10, 680±10 and 700±10 nm) of bioluminescence filters. The following conditions were used for imaging acquisition: exposure time=60 s, binning=medium: 8, field of view=12.9 × 12.9 cm and f/stop=1. The bioluminescence images were analysed by Living Image 4.3 software specialized for IVIS system.

---

Ex vivo BLI
A mouse was scarified immediately after in vivo BLI by using AkaLumine-HCl and the lung was removed. Bioluminescence image of the lung was obtained with the following conditions: open emission filter, exposure time=30 s, binning=medium: 8, field of view=12.9 × 12.9 cm and f/stop=1. The bioluminescence images were analysed by Living Image 4.3 software specialized for IVIS system.

---

Dissolve AkaLumine in dimethyl sulfoxide (DMSO) first, and then dilute it with physiological saline. Intraperitoneally inject the prepared solution into mice at a dose of 10 mg/kg. Observe the bioluminescence signal of mice with an in - vivo imaging system at different time points after injection to perform deep - tissue imaging [1]

No significant toxic effects were observed in mice after intraperitoneal injection of AkaLumine. The general condition of the mice did not change significantly, and no liver or kidney function damage was found, indicating that AkaLumine has good biocompatibility and low toxicity[1].

[1]. A luciferin analogue generating near-infrared bioluminescence achieves highly sensitive deep-tissue imaging. Nat Commun. 2016 Jun 14;7:11856.

AkaLumine is a luciferin analog. Traditional luciferin-luciferase systems are limited in in vivo signal detection because their short-wavelength light is easily absorbed by tissues. AkaLumine can produce near-infrared bioluminescence and has better tissue penetration, thus enabling high-sensitivity deep tissue imaging. It can be used for non-invasive monitoring of gene expression and biological processes in living animals, providing a new method for biological research and preclinical studies [1].

C16H19CLN2O2S

338.85

338.085

C, 56.71; H, 5.65; Cl, 10.46; N, 8.27; O, 9.44; S, 9.46

2558205-28-8

1176235-08-7 (free acid)

124203055

Dark purple to black solid

78.2Ų

2

5

5

22

449

1

CN(C)C1=CC=C(C=C1)/C=C/C=C/C2=N[C@H](CS2)C(=O)O.Cl

PZCNKVAGZCXXHX-SSRSOBHISA-N

InChI=1S/C16H18N2O2S.ClH/c1-18(2)13-9-7-12(8-10-13)5-3-4-6-15-17-14(11-21-15)16(19)20;/h3-10,14H,11H2,1-2H3,(H,19,20);1H/b5-3+,6-4+;/t14-;/m1./s1

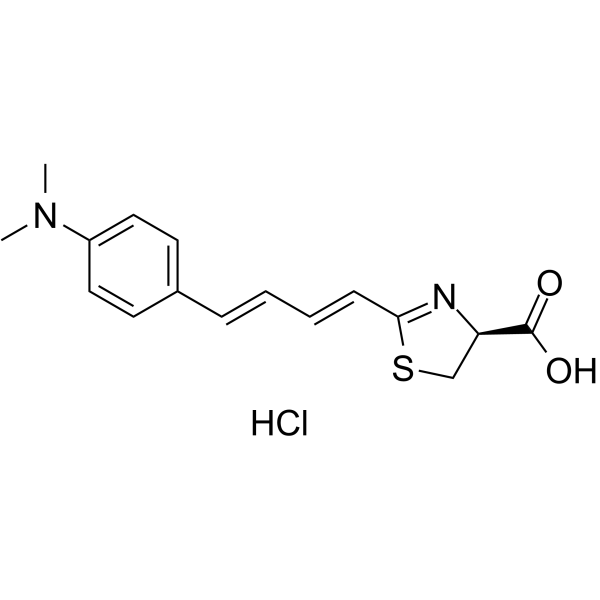

(4S)-2-[(1E,3E)-4-[4-(dimethylamino)phenyl]buta-1,3-dienyl]-4,5-dihydro-1,3-thiazole-4-carboxylic acid;hydrochloride

AkaLumine hydrochloride; TokeOni; 2558205-28-8; AkaLumine (hydrochloride); AkaLumine HCl; (4S)-2-[(1E,3E)-4-[4-(dimethylamino)phenyl]buta-1,3-dienyl]-4,5-dihydro-1,3-thiazole-4-carboxylic acid;hydrochloride; AkaLumine hydrochloride?; orb1706391;

2934.99.9001

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

注意： (1). 本产品在运输和储存过程中需避光。  (2). 请将本产品存放在密封且受保护的环境中（例如氮气保护），避免吸湿/受潮。

Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

DMSO : ~125 mg/mL (~368.89 mM)
H2O : ~50 mg/mL (~147.56 mM)

配方 1 中的溶解度: ≥ 4 mg/mL (11.80 mM) (饱和度未知) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (这些助溶剂从左到右依次添加，逐一添加), 澄清溶液。
例如，若需制备1 mL的工作液，可将100 μL 40.0 mg/mL澄清的DMSO储备液加入到400 μL PEG300中，混匀；再向上述溶液中加入50 μL Tween-80，混匀；然后加入450 μL生理盐水定容至1 mL。
*生理盐水的制备：将 0.9 g 氯化钠溶解在 100 mL ddH₂O中，得到澄清溶液。

---

配方 2 中的溶解度: ≥ 4 mg/mL (11.80 mM) (饱和度未知) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (这些助溶剂从左到右依次添加，逐一添加), 澄清溶液。
例如，若需制备1 mL的工作液，可将 100 μL 40.0mg/mL澄清的DMSO储备液加入到900μL 20％SBE-β-CD生理盐水中，混匀。
*20% SBE-β-CD 生理盐水溶液的制备（4°C，1 周）：将 2 g SBE-β-CD 溶解于 10 mL 生理盐水中，得到澄清溶液。

---

请根据您的实验动物和给药方式选择适当的溶解配方/方案：
1、请先配制澄清的储备液(如：用DMSO配置50 或 100 mg/mL母液(储备液));
2、取适量母液，按从左到右的顺序依次添加助溶剂，澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明，并不一定代表此产品 的实际溶解配方):
10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline);
假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀/澄清；向上述体系中加入50 μL Tween-80，混合均匀/澄清；然后继续加入450 μL ddH2O (或 saline)定容至 1 mL；
3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例;
4、 如产品在配制过程中出现沉淀/析出，可通过加热(≤50℃)或超声的方式助溶;
5、为保证最佳实验结果，工作液请现配现用！
6、如不确定怎么将母液配置成体内动物实验的工作液，请查看说明书或联系我们;
7、 以上所有助溶剂都可在 Invivochem.cn网站购买。
