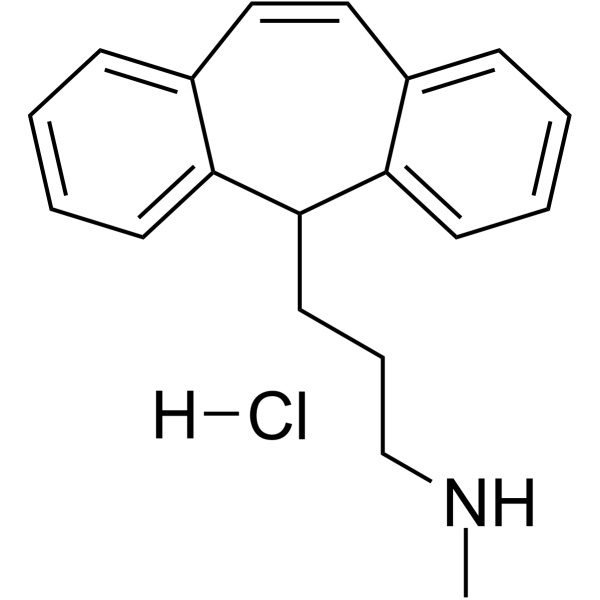

Protriptyline Hydrochloride

别名: 盐酸普罗替林;盐酸普洛替林;N-甲基-5H-二苯并[a,d]环庚烯-5-丙胺盐酸盐; 普罗替林 盐酸盐;普罗替林盐酸盐 标准品;盐酸普罗替林 USP标准品;盐酸盐普罗替林 标准品
目录号: V13301 纯度: ≥98%
Protriptyline HCl 是一种三环抗抑郁药 (TCA),含有仲胺,可用于抑郁症和 ADHD 的研究。
Protriptyline Hydrochloride CAS号: 1225-55-4
产品类别: New1
产品仅用于科学研究,不针对患者销售
规格 价格 库存 数量
5mg
10mg
50mg
100mg
Other Sizes

Other Forms of Protriptyline Hydrochloride:

  • Protriptyline (N-methyl-d3) (hydrochloride)
  • 普罗替林
点击了解更多
InvivoChem产品被CNS等顶刊论文引用
产品描述
Protriptyline HCl 是一种三环抗抑郁药 (TCA),含有仲胺,可用于抑郁症和 ADHD 的研究。与其他抗抑郁药相比,普罗替林具有独特的激励作用,可以使动物充满活力,有时用于发作性睡病相关的研究。
生物活性&实验参考方法
体外研究 (In Vitro)
PC3 细胞对盐酸普罗替林(0-70 μM;24 小时)具有细胞毒性 [2]。
体内研究 (In Vivo)
盐酸普罗替林(10 mg/kg;腹腔注射;21 天;AD 大鼠模型)可改善 STZ 治疗大鼠的空间学习和保留记忆 [3]。
细胞实验
细胞毒性测定[2]
细胞类型: PC3 细胞
测试浓度: 50、60 和 70 μM
孵育时间:24小时
实验结果:细胞活力以浓度依赖性方式减弱。
动物实验
Animal/Disease Models: AD rat model [3]
Doses: 10 mg/kg
Route of Administration: intraperitoneal (ip) injection; 21 days.
Experimental Results: diminished pTau, Aβ42 and BACE-1 levels, neurodegeneration, oxidative stress and glial activation. By reducing NFκB and GFAP expression, improving p-ERK/ERK ratio and increasing BDNF and CREB levels.
药代性质 (ADME/PK)
Absorption, Distribution and Excretion
Protriptyline is reported to undergo cumulative urinary excretion during 16 days, which accounts for approximately 50% of the total drug administered. The fecal excretion pathway seems to play a minimal role in drug elimination.
EXCRETION...IS RAPID, IN CONTRAST TO LONG LATENCY OF ONSET OF ACTION OF DRUGS. /TRICYCLIC ANTIDEPRESSANTS/
...WELL ABSORBED FROM GI TRACT. ... RAPIDLY DISTRIBUTED & METABOLIZED BY DEMETHYLATION, OXIDATION, & AROMATIC HYDROXYLATION. /IMIPRAMINE/
IN URINE OF RATS TREATED WITH PROTRIPTYLINE... THERE WAS TWICE AS MUCH 10,11-DIHYDRO-10,11-EPOXY-5-(3-METHYLAMINOPROPYL)-5H-DIBENZO[A,D]CYCLOHEPTENE AS 10,11-DIHYDRO-10,11-EPOXY-5-(3-AMINOPROPYL)-5H-DIBENZO[A,D]CYCLOHEPTENE EXCRETED &.../BOTH/ ACCOUNTED FOR 40% OF DOSE OF PROTRIPTYLINE.
MEAN PLASMA LEVELS FOR PROTRIPTYLINE IN PT ALSO ADMIN NITRAZEPAM INDISTINGUISHABLE FROM PT RECEIVING NO NITRAZEPAM. MEAN PLASMA LEVELS FOR PT RECEIVING SODIUM AMYLOBARBITONE SIGNIFICANTLY DECR. EARLY VALUES MAY BE OF PREDICTIVE IMPORTANCE TO PERMIT EARLY DOSE ADJUSTMENT.
Metabolism / Metabolites
KNOWN OXIDATION OF 10,11 DOUBLE BOND OF PROTRIPTYLINE IN MAN, MINIATURE PIG, & DOG... 2 METABOLITES HAVE BEEN DETECTED WHICH DEMONSTRATE EPOXIDE INTERMEDIATE, NAMELY, DIHYDRODIOL & REARRANGEMENT PRODUCT WHOSE FORMATION IS...CATIONIC INTERMEDIATE...REARRANGING TO DIHYDROANTHRACENIC STRUCTURE.
IN DOGS, MINIATURE PIGS, & MAN, 3 URINARY METABOLITES HAVE NOW BEEN FOUND 10-HYDROXY-N-METHYL-5H-DIBENZO(AD)CYCLOHEPTENE-5-PROPYLAMINE, 10,11-DIHYDROXY-N-METHYL-5H-DIBENZO(AD)CYCLOHEPTENE-5-PROPYLAMINE & 5,10-DIHYDRO-10-FORMYLANTHRACENE-5-PROPYLAMINE.
...PROTRIPTYLINE...AFFORDS URINARY 10,11-OXIDE.
IN URINE OF RATS TREATED WITH PROTRIPTYLINE...2 METABOLITES HAVE BEEN IDENTIFIED...AS 10,11-DIHYDRO-10,11-EPOXY-5-(3-M ETHYLAMINOPROPYL)-5H-DIBENZO[A,D]CYCLOHEPTENE & 10,11-DIHYDRO-10,11-EPOXY-5-(3-AMINOPROPYL)-5H-DIBENZO[A,D]CYCLOHEPTENE.
Route of Elimination: Cumulative urinary excretion during 16 days accounted for approximately 50% of the drug. The fecal route of excretion did not seem to be important.
Biological Half-Life
AFTER A SINGLE ORAL DOSE OF 30 MG TO 8 SUBJECTS, PEAK LEVELS RANGED FROM 10.4-22.3 NG/ML, 6-12 HR AFTER ADMIN. MEAN T/2 WAS 74.3 HR & RANGED FROM 53.6-91.7 HR IN INDIVIDUAL SUBJECTS.
SINGLE ORAL DOSE OF HCL-SALT ADMIN TO 8 PERSONS. EST 1ST PASS METAB WAS RELATIVELY SMALL, 10-25% OF DOSE, ASSUMING COMPLETE ABSORPTION. MEAN VOL OF DISTRIBUTION 22.5 L/KG & RANGED FROM 15.0-31.2 L/KG. CONCLUSION WAS THAT LONG T/2 IS CORRELATED WITH SMALL 1ST PASS METABOLISM.
PLASMA LEVELS IN 30 PT. AFTER 3.5 WK TREATMENT @ 40 MG/DAY, PLASMA LEVELS RANGED FROM 430-1430 NMOL/L. SINGLE DOSE STUDIES IN 5 VOLUNTEERS SUGGEST THAT VOL OF DISTRIBUTION OF PROTRIPTYLINE SHOWS LITTLE INTERSUBJECT VARIATION. HOWEVER, T/2 MAY VARY, RANGING FROM 54-198 HR.
毒性/毒理 (Toxicokinetics/TK)
Hepatotoxicity
Liver test abnormalities have been reported to occur in 10% to 12% of patients on tricyclic antidepressants, but elevations are uncommonly above 3 times the upper limit of normal. The aminotransferase abnormalities are usually mild, asymptomatic and transient, reversing even with continuation of medication. The rate of serum enzyme elevations specifically during protriptyline therapy has not been well defined. Rare instances of clinically apparent acute liver injury have been reported in patients on tricyclic antidepressants, but there have been no specific reports related to protriptyline. In typical tricyclic antidepressant acute liver injury, the latency to onset has ranged from 1 to 14 months. The pattern of serum enzyme elevations was typically cholestatic, but hepatocellular cases have also been reported including an acute hepatitis-like syndrome with acute liver failure. Instances of acute cholestatic hepatitis and prolonged jaundice compatible with vanishing bile duct syndrome have been linked to other tricyclic antidepressants, mostly amitriptyline and imipramine, the two most commonly used agents in this class. Signs or symptoms of hypersensitivity (rash, fever and eosinophilia) are frequent in reported cases, but these symptoms are usually mild and transient. Autoantibody formation is rare. Protriptyline is a rarely used tricyclic antidepressant but is suspected of having a profile of adverse effects similar to that of imipramine and amitriptyline.
Likelihood score: E* (unproven but suspected rare cause of clinically apparent liver injury).
Effects During Pregnancy and Lactation
◉ Summary of Use during Lactation
Because there is no published experience with protriptyline during breastfeeding, other agents may be preferred, especially while nursing a newborn or preterm infant.
◉ Effects in Breastfed Infants
Published information on protriptyline was not found as of the revision date. Follow-up for 1 to 3 years in a group of 20 breastfed infants whose mothers were taking a tricyclic antidepressant found no adverse effects on growth and development. Two small controlled studies indicate that other tricyclic antidepressants have no adverse effect on infant development. In another study, 25 infants whose mothers took a tricyclic antidepressant during pregnancy and lactation were tested formally between 15 to 71 months and found to have normal growth and development.
◉ Effects on Lactation and Breastmilk
An observational study looked at outcomes of 2859 women who took an antidepressant during the 2 years prior to pregnancy. Compared to women who did not take an antidepressant during pregnancy, mothers who took an antidepressant during all 3 trimesters of pregnancy were 37% less likely to be breastfeeding upon hospital discharge. Mothers who took an antidepressant only during the third trimester were 75% less likely to be breastfeeding at discharge. Those who took an antidepressant only during the first and second trimesters did not have a reduced likelihood of breastfeeding at discharge. The antidepressants used by the mothers were not specified.
A retrospective cohort study of hospital electronic medical records from 2001 to 2008 compared women who had been dispensed an antidepressant during late gestation (n = 575) to those who had a psychiatric illness but did not receive an antidepressant (n = 1552) and mothers who did not have a psychiatric diagnosis (n = 30,535). Women who received an antidepressant were 37% less likely to be breastfeeding at discharge than women without a psychiatric diagnosis, but no less likely to be breastfeeding than untreated mothers with a psychiatric diagnosis. None of the mothers were taking protriptyline.
In a study of 80,882 Norwegian mother-infant pairs from 1999 to 2008, new postpartum antidepressant use was reported by 392 women and 201 reported that they continued antidepressants from pregnancy. Compared with the unexposed comparison group, late pregnancy antidepressant use was associated with a 7% reduced likelihood of breastfeeding initiation, but with no effect on breastfeeding duration or exclusivity. Compared with the unexposed comparison group, new or restarted antidepressant use was associated with a 63% reduced likelihood of predominant, and a 51% reduced likelihood of any breastfeeding at 6 months, as well as a 2.6-fold increased risk of abrupt breastfeeding discontinuation. Specific antidepressants were not mentioned.
参考文献

[1]. Molecular investigations of protriptyline as a multi-target directed ligand in Alzheimer's disease. PLoS One. 2014 Aug 20;9(8):e105196.

[2]. The mechanism of protriptyline-induced Ca2+ movement and non-Ca2+-triggered cell death in PC3 human prostate cancer cells. J Recept Signal Transduct Res. 2015;35(5):429-34.

[3]. Protriptyline improves spatial memory and reduces oxidative damage by regulating NFκB-BDNF/CREB signaling axis in streptozotocin-induced rat model of Alzheimer's disease. Brain Res. 2021 Mar 1;1754:147261.

其他信息
Protriptyline is a carbotricyclic compound. It has a role as an antidepressant. It derives from a hydride of a dibenzo[a,d][7]annulene.
Protriptyline hydrochloride is a dibenzocycloheptene-derivative tricyclic antidepressant (TCA). TCAs are structurally similar to phenothiazines. They contain a tricyclic ring system with an alkyl amine substituent on the central ring. In non-depressed individuals, protriptyline does not affect mood or arousal, but may cause sedation. In depressed individuals, protriptyline exerts a positive effect on mood. TCAs are potent inhibitors of serotonin and norepinephrine reuptake. In addition, TCAs down-regulate cerebral cortical β-adrenergic receptors and sensitize post-synaptic serotonergic receptors with chronic use. The antidepressant effects of TCAs are thought to be due to an overall increase in serotonergic neurotransmission. TCAs also block histamine H1 receptors, alpha1-adrenergic receptors and muscarinic receptors, which accounts for their sedative, hypotensive and anticholinergic effects (e.g. blurred vision, dry mouth, constipation, urinary retention), respectively. See toxicity section below for a complete listing of side effects. Protriptyline may be used for the treatment of depression.
Protriptyline is a Tricyclic Antidepressant.
Protriptyline is a tricyclic antidepressant that was previously widely used in the therapy of major depression. Most of the tricyclic antidepressants have been shown to cause a low rate of mild and transient serum enzyme elevations and rare cases of clinically apparent acute cholestatic liver injury. The potential hepatotoxicity specifically of protriptyline, however, has not been well defined.
Protriptyline hydrochloride is a dibenzocycloheptene-derivative tricyclic antidepressant (TCA). TCAs are structurally similar to phenothiazines. They contain a tricyclic ring system with an alkyl amine substituent on the central ring. In non-depressed individuals, protriptyline does not affect mood or arousal, but may cause sedation. In depressed individuals, protriptyline exerts a positive effect on mood. TCAs are potent inhibitors of serotonin and norepinephrine reuptake. In addition, TCAs down-regulate cerebral cortical β-adrenergic receptors and sensitize post-synaptic serotonergic receptors with chronic use. The antidepressant effects of TCAs are thought to be due to an overall increase in serotonergic neurotransmission. TCAs also block histamine H1 receptors, α1-adrenergic receptors and muscarinic receptors, which accounts for their sedative, hypotensive and anticholinergic effects (e.g. blurred vision, dry mouth, constipation, urinary retention), respectively. See toxicity section below for a complete listing of side effects. Protriptyline may be used for the treatment of depression.
Tricyclic antidepressant similar in action and side effects to IMIPRAMINE. It may produce excitation.
See also: Protriptyline Hydrochloride (has salt form).
Drug Indication
For the treatment of depression.
Mechanism of Action
Protriptyline acts by decreasing the reuptake of norepinephrine and serotonin (5-HT).
ACTION OF TRICYCLIC ANTIDEPRESSANTS ON METAB OF CATECHOLAMINES & INDOLEAMINES IN BRAIN HAS CONTRIBUTED SIGNIFICANTLY TO "BIOGENIC AMINE HYPOTHESIS" OF DEPRESSION. ... /ALL/ BLOCK RE-UPTAKE OF NOREPINEPHRINE BY ADRENERGIC NERVE TERMINALS. /DEMETHYLATED ANALOGS ARE MORE POTENT IN THIS ACTION/ /TRICYCLIC ANTIDEPRESSANTS/
*注: 文献方法仅供参考, InvivoChem并未独立验证这些方法的准确性
化学信息 & 存储运输条件
分子式
C19H22CLN
分子量
299.84
精确质量
299.144
CAS号
1225-55-4
相关CAS号
Protriptyline;438-60-8;Protriptyline (N-methyl-d3) (hydrochloride);1435934-21-6
PubChem CID
4976
外观&性状
White to off-white solid powder
沸点
407.7ºC at 760 mmHg
熔点
169-171°
闪点
198.3ºC
蒸汽压
7.41E-07mmHg at 25°C
LogP
5.494
tPSA
12.03
氢键供体(HBD)数目
1
氢键受体(HBA)数目
1
可旋转键数目(RBC)
4
重原子数目
20
分子复杂度/Complexity
296
定义原子立体中心数目
0
InChi Key
BWPIARFWQZKAIA-UHFFFAOYSA-N
InChi Code
InChI=1S/C19H21N/c1-20-14-6-11-19-17-9-4-2-7-15(17)12-13-16-8-3-5-10-18(16)19/h2-5,7-10,12-13,19-20H,6,11,14H2,1H3
化学名
N-methyl-3-(2-tricyclo[9.4.0.03,8]pentadeca-1(15),3,5,7,9,11,13-heptaenyl)propan-1-amine
HS Tariff Code
2934.99.9001
存储方式

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

注意: 请将本产品存放在密封且受保护的环境中,避免吸湿/受潮。
运输条件
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
溶解度数据
溶解度 (体外实验)
DMSO : ~250 mg/mL (~833.78 mM)
H2O : ~100 mg/mL (~333.51 mM)
溶解度 (体内实验)
配方 1 中的溶解度: ≥ 2.08 mg/mL (6.94 mM) (饱和度未知) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (这些助溶剂从左到右依次添加,逐一添加), 澄清溶液。
例如,若需制备1 mL的工作液,可将100 μL 20.8 mg/mL澄清DMSO储备液加入400 μL PEG300中,混匀;然后向上述溶液中加入50 μL Tween-80,混匀;加入450 μL生理盐水定容至1 mL。
*生理盐水的制备:将 0.9 g 氯化钠溶解在 100 mL ddH₂O中,得到澄清溶液。

配方 2 中的溶解度: ≥ 2.08 mg/mL (6.94 mM) (饱和度未知) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (这些助溶剂从左到右依次添加,逐一添加), 澄清溶液。
例如,若需制备1 mL的工作液,可将 100 μL 20.8 mg/mL澄清DMSO储备液加入900 μL 20% SBE-β-CD生理盐水溶液中,混匀。
*20% SBE-β-CD 生理盐水溶液的制备(4°C,1 周):将 2 g SBE-β-CD 溶解于 10 mL 生理盐水中,得到澄清溶液。

View More

配方 3 中的溶解度: ≥ 2.08 mg/mL (6.94 mM) (饱和度未知) in 10% DMSO + 90% Corn Oil (这些助溶剂从左到右依次添加,逐一添加), 澄清溶液。
例如,若需制备1 mL的工作液,可将 100 μL 20.8 mg/mL 澄清 DMSO 储备液加入到 900 μL 玉米油中并混合均匀。


配方 4 中的溶解度: 100 mg/mL (333.51 mM) in PBS (这些助溶剂从左到右依次添加,逐一添加), 澄清溶液; 超声助溶.

请根据您的实验动物和给药方式选择适当的溶解配方/方案:
1、请先配制澄清的储备液(如:用DMSO配置50 或 100 mg/mL母液(储备液));
2、取适量母液,按从左到右的顺序依次添加助溶剂,澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明,并不一定代表此产品 的实际溶解配方):
10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline);
假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中,混合均匀/澄清;向上述体系中加入50 μL Tween-80,混合均匀/澄清;然后继续加入450 μL ddH2O (或 saline)定容至 1 mL;

3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例;
4、 如产品在配制过程中出现沉淀/析出,可通过加热(≤50℃)或超声的方式助溶;
5、为保证最佳实验结果,工作液请现配现用!
6、如不确定怎么将母液配置成体内动物实验的工作液,请查看说明书或联系我们;
7、 以上所有助溶剂都可在 Invivochem.cn网站购买。
制备储备液 1 mg 5 mg 10 mg
1 mM 3.3351 mL 16.6756 mL 33.3511 mL
5 mM 0.6670 mL 3.3351 mL 6.6702 mL
10 mM 0.3335 mL 1.6676 mL 3.3351 mL

1、根据实验需要选择合适的溶剂配制储备液 (母液):对于大多数产品,InvivoChem推荐用DMSO配置母液 (比如:5、10、20mM或者10、20、50 mg/mL浓度),个别水溶性高的产品可直接溶于水。产品在DMSO 、水或其他溶剂中的具体溶解度详见上”溶解度 (体外)”部分;

2、如果您找不到您想要的溶解度信息,或者很难将产品溶解在溶液中,请联系我们;

3、建议使用下列计算器进行相关计算(摩尔浓度计算器、稀释计算器、分子量计算器、重组计算器等);

4、母液配好之后,将其分装到常规用量,并储存在-20°C或-80°C,尽量减少反复冻融循环。

计算器

摩尔浓度计算器可计算特定溶液所需的质量、体积/浓度,具体如下:

  • 计算制备已知体积和浓度的溶液所需的化合物的质量
  • 计算将已知质量的化合物溶解到所需浓度所需的溶液体积
  • 计算特定体积中已知质量的化合物产生的溶液的浓度
使用摩尔浓度计算器计算摩尔浓度的示例如下所示:
假如化合物的分子量为350.26 g/mol,在5mL DMSO中制备10mM储备液所需的化合物的质量是多少?
  • 在分子量(MW)框中输入350.26
  • 在“浓度”框中输入10,然后选择正确的单位(mM)
  • 在“体积”框中输入5,然后选择正确的单位(mL)
  • 单击“计算”按钮
  • 答案17.513 mg出现在“质量”框中。以类似的方式,您可以计算体积和浓度。

稀释计算器可计算如何稀释已知浓度的储备液。例如,可以输入C1、C2和V2来计算V1,具体如下:

制备25毫升25μM溶液需要多少体积的10 mM储备溶液?
使用方程式C1V1=C2V2,其中C1=10mM,C2=25μM,V2=25 ml,V1未知:
  • 在C1框中输入10,然后选择正确的单位(mM)
  • 在C2框中输入25,然后选择正确的单位(μM)
  • 在V2框中输入25,然后选择正确的单位(mL)
  • 单击“计算”按钮
  • 答案62.5μL(0.1 ml)出现在V1框中
g/mol

分子量计算器可计算化合物的分子量 (摩尔质量)和元素组成,具体如下:

注:化学分子式大小写敏感:C12H18N3O4  c12h18n3o4
计算化合物摩尔质量(分子量)的说明:
  • 要计算化合物的分子量 (摩尔质量),请输入化学/分子式,然后单击“计算”按钮。
分子质量、分子量、摩尔质量和摩尔量的定义:
  • 分子质量(或分子量)是一种物质的一个分子的质量,用统一的原子质量单位(u)表示。(1u等于碳-12中一个原子质量的1/12)
  • 摩尔质量(摩尔重量)是一摩尔物质的质量,以g/mol表示。
/

配液计算器可计算将特定质量的产品配成特定浓度所需的溶剂体积 (配液体积)

  • 输入试剂的质量、所需的配液浓度以及正确的单位
  • 单击“计算”按钮
  • 答案显示在体积框中
动物体内实验配方计算器(澄清溶液)
第一步:请输入基本实验信息(考虑到实验过程中的损耗,建议多配一只动物的药量)
第二步:请输入动物体内配方组成(配方适用于不溶/难溶于水的化合物),不同的产品和批次配方组成不同,如对配方有疑问,可先联系我们提供正确的体内实验配方。此外,请注意这只是一个配方计算器,而不是特定产品的确切配方。
+
+
+

计算结果:

工作液浓度 mg/mL;

DMSO母液配制方法 mg 药物溶于 μL DMSO溶液(母液浓度 mg/mL)。如该浓度超过该批次药物DMSO溶解度,请首先与我们联系。

体内配方配制方法μL DMSO母液,加入 μL PEG300,混匀澄清后加入μL Tween 80,混匀澄清后加入 μL ddH2O,混匀澄清。

(1) 请确保溶液澄清之后,再加入下一种溶剂 (助溶剂) 。可利用涡旋、超声或水浴加热等方法助溶;
            (2) 一定要按顺序加入溶剂 (助溶剂) 。

生物数据图片
  • A. Determination of IC50 values of five drugs for AChE by using 0.05–0.8 mM concentration range of all the drugs B. Estimation of the kinetic constants by Lineweaver–Burk analysis. AChE inhibition by protriptyline showed competitive inhibition. C. Isothermal Titration Calorimetric analysis of protriptyline – AChE interactions. The upper panel shows the raw data in the form of heat effect during titration and the lower panel shows corresponding thermogram representing the best fit curve D. Snapshot of drug binding with catalytic subsite of AChE E. snapshot of drug binding with anionic subsite of AChE F. Distribution of Protriptyline –anionic subsite (solid line) and Protriptyline –esteratic subsite (broken line) nonbonded (nonb) interaction energy; data are averaged over last 20 ns G. Fluorescence quenching of AChE by protriptyline.[1].Molecular investigations of protriptyline as a multi-target directed ligand in Alzheimer's disease. PLoS One. 2014 Aug 20;9(8):e105196.
  • Aβ13–22 aggregation in the absence and presence of protriptyline was investigated by A. Thioflavin T assay B. Light scattering C. CD analysis D. Atomic Force Microscopy images [i and iv] of aggregated amyloid and Amyloid + protriptyline (0.010 mM) in 10×10 µm2 and 20×20 µm2 surface area respectively. It is also represented in Line profile [ii and v] and 3D images [iii and vi].[1].Molecular investigations of protriptyline as a multi-target directed ligand in Alzheimer's disease. PLoS One. 2014 Aug 20;9(8):e105196.
  • A. Evolution of monomer-monomer interaction strength over time for free dimer (broken line) and Protriptylline-bound dimer (solid line). Inset. Distributions of the interactions from multiple trajectories, and the dimer interactions with Protriptylline (in brown) B. Distributions of the asphericity for free (in broken line) and Protriptylline-bound (solid line) dimer C. Representative snapshot of most populated cluster of free, and D. Protriptylline-bound dimer [16–20 region in blue colour with 19–20 showed in line representation; protriptyline in red colour and two Aβ peptides are in cyan and limon colour respectively] E. Residue-residue contact probabilities for free dimer, and F. Protriptylline-bound dimer G. Residue-wise Beta sheet percentages for free dimer (in red) and Protriptylline-bound dimer (in blue) H. Residue-wise helical percentages for free dimer (in red) and Pro-bound dimer (in blue).[1].Molecular investigations of protriptyline as a multi-target directed ligand in Alzheimer's disease. PLoS One. 2014 Aug 20;9(8):e105196.
