规格 | 价格 | 库存 | 数量 |
---|---|---|---|
5mg |
|
||
10mg |
|
||
25mg |
|
||
50mg |
|
||
100mg |
|
||
250mg |
|
||
500mg |
|
||
Other Sizes |
|
靶点 |
MAP4K4 (IC50 = 3.7 nM)
|
---|---|
体外研究 (In Vitro) |
PF-6260933 表现出良好的理化特性和中等的 HLM 清除率[1]。
|
体内研究 (In Vivo) |
PF-6260933 在小鼠模型中口服给药 (10 mg/kg) 后表现出血浆暴露,在约 4-6 小时内提供高于细胞 IC50 值的游离药物浓度。 PF-6260933 在小鼠体内的 PK 特性适合用作体内糖尿病模型的工具[1]。
|
酶活实验 |
主动脉在 1% NP-40、50 mM Tris pH 7.4、150 mM NaCl、50 mM EDTA 和 1 × HALT 蛋白酶和磷酸酶抑制剂 (Thermo Scientific) 中裂解。然后使用 B乙基 MAP4K4 抗体(503 A;1 μg)或常规兔 IgG(Cell Signaling 2729;1 μg)进行免疫沉淀。将免疫沉淀物与 1 μg 髓磷脂碱性蛋白 (MBP) 和 10 μCi 的 [γ-32P]ATP 混合,然后在激酶缓冲液(20 mM HEPES、10 nM MgCl2、1 mM 二硫苏糖醇)中于 30 °C 孵育 30 分钟(DTT)、蛋白酶和磷酸酶抑制剂混合物。样品在 12% SDS-聚丙烯酰胺凝胶上进行电泳分离,然后进行放射自显影观察。
|
细胞实验 |
在 EGM2 培养基中,HUVEC 在 5% CO2 和 37°C 下保持存活。为了确定 MAP4K4 的药理抑制是否会改变响应 TNF-α 的 MAPK 信号转导,在体外用载体或 PF-06260933 处理 HUVEC 或腹膜巨噬细胞。
|
动物实验 |
Compound PF-06260933 (10 mg/kg, dissolved in dH2O) is orally administered to 8 to 10-week-old male Apoe-/- mice twice daily for 6 weeks. Male Ldlr-/- mice are subjected to a high-fat diet (HFD) for ten weeks prior to medication administration. Male Ldlr-/- mice aged 8 to 10 weeks receive the same dosage of compound PF-06260933 for 10 weeks. In all studies, the vehicle control is the oral administration of water. CO2 inhalation and bilateral pneumothorax are used to put mice to sleep.
|
参考文献 |
分子式 |
C16H13CLN4
|
|
---|---|---|
分子量 |
296.08
|
|
精确质量 |
296.08
|
|
元素分析 |
C, 64.76; H, 4.42; Cl, 11.95; N, 18.88
|
|
CAS号 |
1811510-56-1
|
|
相关CAS号 |
1883548-86-4 (2HCl);1811510-56-1;2118243-34-6 (HCl);
|
|
外观&性状 |
Solid powder
|
|
SMILES |

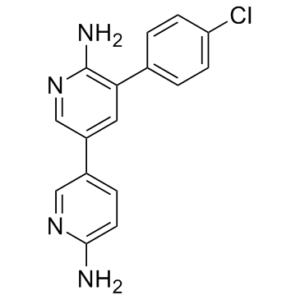

C1=CC(=CC=C1C2=C(N=CC(=C2)C3=CN=C(C=C3)N)N)Cl
|
|
InChi Key |
KHPCIHZXOGHCLY-UHFFFAOYSA-N
|
|
InChi Code |
InChI=1S/C16H13ClN4/c17-13-4-1-10(2-5-13)14-7-12(9-21-16(14)19)11-3-6-15(18)20-8-11/h1-9H,(H2,18,20)(H2,19,21)
|
|
化学名 |
5-(6-aminopyridin-3-yl)-3-(4-chlorophenyl)pyridin-2-amine
|
|
别名 |
|
|
HS Tariff Code |
2934.99.9001
|
|
存储方式 |
Powder -20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
|
运输条件 |
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
|
溶解度 (体外) |
|
|||
---|---|---|---|---|
溶解度 (体内) |
Solubility in Formulation 1: ≥ 2.5 mg/mL (8.42 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (8.42 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly. 请根据您的实验动物和给药方式选择适当的溶解配方/方案: 1、请先配制澄清的储备液(如:用DMSO配置50 或 100 mg/mL母液(储备液)); 2、取适量母液,按从左到右的顺序依次添加助溶剂,澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明,并不一定代表此产品 的实际溶解配方): 10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline); 假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中,混合均匀/澄清;向上述体系中加入50 μL Tween-80,混合均匀/澄清;然后继续加入450 μL ddH2O (或 saline)定容至 1 mL; 3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例; 4、 如产品在配制过程中出现沉淀/析出,可通过加热(≤50℃)或超声的方式助溶; 5、为保证最佳实验结果,工作液请现配现用! 6、如不确定怎么将母液配置成体内动物实验的工作液,请查看说明书或联系我们; 7、 以上所有助溶剂都可在 Invivochem.cn网站购买。 |
制备储备液 | 1 mg | 5 mg | 10 mg | |
1 mM | 3.3775 mL | 16.8873 mL | 33.7747 mL | |
5 mM | 0.6755 mL | 3.3775 mL | 6.7549 mL | |
10 mM | 0.3377 mL | 1.6887 mL | 3.3775 mL |
1、根据实验需要选择合适的溶剂配制储备液 (母液):对于大多数产品,InvivoChem推荐用DMSO配置母液 (比如:5、10、20mM或者10、20、50 mg/mL浓度),个别水溶性高的产品可直接溶于水。产品在DMSO 、水或其他溶剂中的具体溶解度详见上”溶解度 (体外)”部分;
2、如果您找不到您想要的溶解度信息,或者很难将产品溶解在溶液中,请联系我们;
3、建议使用下列计算器进行相关计算(摩尔浓度计算器、稀释计算器、分子量计算器、重组计算器等);
4、母液配好之后,将其分装到常规用量,并储存在-20°C或-80°C,尽量减少反复冻融循环。
计算结果:
工作液浓度: mg/mL;
DMSO母液配制方法: mg 药物溶于 μL DMSO溶液(母液浓度 mg/mL)。如该浓度超过该批次药物DMSO溶解度,请首先与我们联系。
体内配方配制方法:取 μL DMSO母液,加入 μL PEG300,混匀澄清后加入μL Tween 80,混匀澄清后加入 μL ddH2O,混匀澄清。
(1) 请确保溶液澄清之后,再加入下一种溶剂 (助溶剂) 。可利用涡旋、超声或水浴加热等方法助溶;
(2) 一定要按顺序加入溶剂 (助溶剂) 。
Pharmacological MAP4K4 inhibition ameliorates atherosclerosis.Nat Commun.2015 Dec 21;6:8995. th> |
---|
(a) Effects of16(PF-06260933 )on LPS-induced TNFα levels in C57-BL/6J mice). (b) Effects of16on glycemic control inob/obmice.ACS Med Chem Lett.2015 Oct 6;6(11):1128-33. td> |
Total and free plasma concentration of16(PF-06260933 )after PO dosing (10 mg/kg) to mice.ACS Med Chem Lett.2015 Oct 6;6(11):1128-33. td> |
Heat map obtained from an Invitrogen selectivity panel (% inhibition of kinases tested @1 μM).ACS Med Chem Lett.2015 Oct 6;6(11):1128-33. th> |
---|
ACS Med Chem Lett.2015 Oct 6;6(11):1128-33. td> |
