规格 | 价格 | 库存 | 数量 |
---|---|---|---|
5mg |
|
||
10mg |
|
||
25mg |
|
||
50mg |
|
||
100mg |
|
||
250mg |
|
||
500mg |
|
||
Other Sizes |
|
体外研究 (In Vitro) |
体外活性:PF-06260933 是一种高度选择性的 MAP4K4 小分子抑制剂,无细胞测定(激酶)和细胞测定的 IC50 值分别为 3.7 和 160 nM。它还抑制 MINK 和 TNIK,IC50 值分别为 8 和 13 nM。据报道,PF-06260933 可改善小鼠的空腹高血糖。最近对脂肪组织、胰腺、肌肉和巨噬细胞的研究表明,丝氨酸/苏氨酸蛋白激酶 MAP4K4 可能是抗糖尿病药物的可行靶点。作为 MAP4K4 作为新型抗糖尿病靶点评估的一部分,PF-6260933。激酶测定:主动脉在 1% NP-40、50 mM Tris pH 7.4、150 mM NaCl、50 mM EDTA 和 1 × HALT 蛋白酶和磷酸酶抑制剂 (Thermo Scientific) 中裂解,并用 B乙基 MAP4K4 抗体(503 A;1 μg)进行免疫沉淀)或正常兔 IgG(Cell Signaling 2729;1 μg)。将髓磷脂碱性蛋白 (MBP) (1 μg) 和 10 μCi 的 [γ-32P]ATP 添加到免疫沉淀物中,并在激酶缓冲液(20 mM HEPES、10 nM MgCl2、1 mM 二硫苏糖醇( DTT)和蛋白酶和磷酸酶抑制剂混合物)。通过 12% SDS-聚丙烯酰胺凝胶电泳分离样品并通过放射自显影观察。细胞测定:HUVEC 保存在 37°C 和 5% CO2 的 EGM2 培养基中。在体外用载体或 PF-06260933 处理 HUVEC 或腹膜巨噬细胞,以确定 MAP4K4 的药理学抑制是否会改变响应 TNF-α 的 MAPK 信号传导
|
||
---|---|---|---|
体内研究 (In Vivo) |
在 6-8 周龄时,雄性 flox/flox 和 flox/flox/cre+ 同窝仔鼠每天注射 1 mg 他莫昔芬的玉米油溶液,持续 5 天。在 5-6 周龄(KD 小鼠)或注射他莫昔芬后 2 周(flox 小鼠)时,给小鼠喂食食物或 WD(0.2% 胆固醇,TD 88137,Harlan Laboratories)16 周。将化合物 PF-06260933(10 mg kg−1,溶解在 dH2O 中)口服给予 8-10 周龄雄性 ApoE−/− 小鼠,每天两次,持续 6 周。 Ldlr−/− 雄性小鼠(B6.129S7-Ldlrtm1Her/J,Jackson Laboratories,8-10 周龄)在给药前接受 HFD(1.25% 胆固醇,TD96121,Harlan Laboratories)10 周。如上所述,将化合物 PF-06260933 给予 8-10 周龄雄性 Ldlr−/− 小鼠,持续 10 周。在所有研究中,口服水用作载体对照。小鼠通过吸入CO 2 并随后双侧气胸而被安乐死。没有使用统计方法来预测样本量,没有进行随机化,并且在基因敲除动物分析期间调查不是盲法,但在药物治疗分析期间是盲法。
|
||
动物实验 |
|
||
参考文献 |
ACS Med Chem Lett.2015 Oct 6;6(11):1128-33;Nat Commun.2015 Dec 21;6:8995.
|
分子式 |
C16H15CL3N4
|
---|---|
分子量 |
369.67610001564
|
CAS号 |
1883548-86-4
|
相关CAS号 |
1883548-86-4 (2HCl);1811510-56-1;2118243-34-6 (HCl);
|
SMILES |

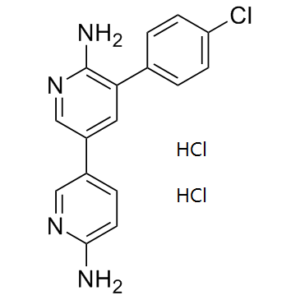

ClC1C=CC(=CC=1)C1C(N)=NC=C(C2C=NC(=CC=2)N)C=1.Cl.Cl
|
别名 |
PF-06260933 2HCl; PF 06260933 2HCl; PF06260933 2HCl;PF-06260933 dihydrochloride; PF 06260933 dihydrochloride; PF06260933dihydrochloride
|
存储方式 |
Powder -20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
运输条件 |
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
|
溶解度 (体外) |
|
|||
---|---|---|---|---|
溶解度 (体内) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples.
Injection Formulations
Injection Formulation 1: DMSO : Tween 80: Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline)(e.g. IP/IV/IM/SC) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 :Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). View More
Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] Oral Formulations
Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). View More
Oral Formulation 3: Dissolved in PEG400 请根据您的实验动物和给药方式选择适当的溶解配方/方案: 1、请先配制澄清的储备液(如:用DMSO配置50 或 100 mg/mL母液(储备液)); 2、取适量母液,按从左到右的顺序依次添加助溶剂,澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明,并不一定代表此产品 的实际溶解配方): 10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline); 假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中,混合均匀/澄清;向上述体系中加入50 μL Tween-80,混合均匀/澄清;然后继续加入450 μL ddH2O (或 saline)定容至 1 mL; 3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例; 4、 如产品在配制过程中出现沉淀/析出,可通过加热(≤50℃)或超声的方式助溶; 5、为保证最佳实验结果,工作液请现配现用! 6、如不确定怎么将母液配置成体内动物实验的工作液,请查看说明书或联系我们; 7、 以上所有助溶剂都可在 Invivochem.cn网站购买。 |
制备储备液 | 1 mg | 5 mg | 10 mg | |
1 mM | 2.7050 mL | 13.5252 mL | 27.0504 mL | |
5 mM | 0.5410 mL | 2.7050 mL | 5.4101 mL | |
10 mM | 0.2705 mL | 1.3525 mL | 2.7050 mL |
1、根据实验需要选择合适的溶剂配制储备液 (母液):对于大多数产品,InvivoChem推荐用DMSO配置母液 (比如:5、10、20mM或者10、20、50 mg/mL浓度),个别水溶性高的产品可直接溶于水。产品在DMSO 、水或其他溶剂中的具体溶解度详见上”溶解度 (体外)”部分;
2、如果您找不到您想要的溶解度信息,或者很难将产品溶解在溶液中,请联系我们;
3、建议使用下列计算器进行相关计算(摩尔浓度计算器、稀释计算器、分子量计算器、重组计算器等);
4、母液配好之后,将其分装到常规用量,并储存在-20°C或-80°C,尽量减少反复冻融循环。
计算结果:
工作液浓度: mg/mL;
DMSO母液配制方法: mg 药物溶于 μL DMSO溶液(母液浓度 mg/mL)。如该浓度超过该批次药物DMSO溶解度,请首先与我们联系。
体内配方配制方法:取 μL DMSO母液,加入 μL PEG300,混匀澄清后加入μL Tween 80,混匀澄清后加入 μL ddH2O,混匀澄清。
(1) 请确保溶液澄清之后,再加入下一种溶剂 (助溶剂) 。可利用涡旋、超声或水浴加热等方法助溶;
(2) 一定要按顺序加入溶剂 (助溶剂) 。
Pharmacological MAP4K4 inhibition ameliorates atherosclerosis.Nat Commun.2015 Dec 21;6:8995. th> |
---|
(a) Effects of16 (PF-06260933 )on LPS-induced TNFα levels in C57-BL/6J mice). (b) Effects of16on glycemic control inob/obmice.ACS Med Chem Lett.2015 Oct 6;6(11):1128-33. td> |
Total and free plasma concentration of16(PF-06260933 )after PO dosing (10 mg/kg) to mice.ACS Med Chem Lett.2015 Oct 6;6(11):1128-33. td> |
Heat map obtained from an Invitrogen selectivity panel (% inhibition of kinases tested @1 μM).ACS Med Chem Lett.2015 Oct 6;6(11):1128-33. th> |
---|
ACS Med Chem Lett.2015 Oct 6;6(11):1128-33. td> |
