Guanylyl cyclase (sGC); Monoamine oxidase A (MAO-A); NO synthase (NOS)[1]

LPS 激活的 BV2 小胶质细胞可以改变其免疫学特征，并通过亚甲蓝 (Basic Blue 9)（4.5 μM；BV2 小胶质细胞）降低其 CD14、IL-1β、TNF-α 和 CCL2 mRNA 水平 [3]。

---

Methylene blue (MB)/亚甲基蓝是吩噻嗪和其他衍生物的第一个先导化学结构，通常用于诊断程序和治疗高铁血红蛋白血症。我们之前已经证明，MB可以作为一种替代的线粒体电子转移载体，增强细胞耗氧量，并在体外和帕金森病和中风的啮齿动物模型中提供保护。在本研究中，我们使用MB和六种结构相关化合物研究了MB的体外构效关系。MB通过绕过线粒体复合物I-III的替代电子转移减少线粒体超氧化物的产生。MB减轻了反应性自由基的产生，并在HT-22细胞中提供了针对谷氨酸、IAA和鱼藤酮毒性的神经保护。显然，MB对葡萄糖氧化酶诱导的直接氧化应激没有保护作用。在MB的10个氮原子上替换侧链，使其对谷氨酸神经毒性的保护效力降低了1000倍。在3和7位没有侧链的化合物，氯苯噻嗪和吩噻嗪，与MB相比具有不同的氧化还原电位，不能增强线粒体电子转移，同时对谷氨酸、IAA和鱼藤酮损伤具有直接的抗氧化作用。与MB相比，氯苯噻嗪在线粒体裂解物分析中表现出直接的抗氧化作用，MB需要NADH和线粒体的还原。MB增加了复合物IV的表达和活性，而2-氯苯噻嗪没有影响。我们的研究表明，MB可以通过作为线粒体电子转移载体和线粒体中可再生的抗氧化剂来减弱超氧化物的产生[4]。

每 25 分钟一次以 50 和 100 mg/kg 的剂量腹膜内给予雄性 NMRI 小鼠一次亚甲蓝（Basic Blue 9）可减少前脉冲抑制的不足[1]。 ?在表达全长促聚集人类 Tau 能力的小鼠中，Basic Blue 9（20 和 40 mg/kg；口服；每天一次，持续 6 个月；CaMKIIα-tTA 反式激活小鼠）保留了认知能力[2]。 ?在经 TBI 治疗的雄性 BALB/c 小鼠中，Basic Blue 9（2 mg/kg；静脉注射；1 天一次）可减少最初的抑郁样行为以及 TBI 引起的水肿和神经炎症 [3]。 ?通过每天一次以 2 mg/kg 的剂量静脉注射亚甲蓝（Basic Blue 9），TBI 治疗的雄性 BALB/c 小鼠中炎症因子的百分比降低[3]。

线粒体膜电位分析[4]
如前所述，使用TMRE/NAO通过FRET分析线粒体膜电位。TMRE在正常线粒体膜电位下淬灭NAO荧光。随着膜电位的降低，TMRE荧光降低，导致NAO荧光增加。NAO荧光的增加被解释为线粒体膜电位的降低。细胞与谷氨酸和亚甲基蓝（MB）或相关化合物一起孵育12小时。然后移除培养基，用PBS洗涤细胞一次，然后在37°C下在含有1µM NAO和1µM TMRE的PBS中孵育30分钟。移除NAO/TMRE，在KRH中于37°C下再孵育细胞15分钟。在PBS中洗涤细胞两次，使用Tecan Infinite F200平板读数器测量NAO荧光（激发485，发射530）。原始数据表示为RFU。然后根据对照和钙黄绿素AM细胞活力对NAO荧光进行标准化。

---

活性氧物种分析[4]
使用荧光酶标仪、流式细胞术和荧光显微镜，通过ROS反应性荧光指示剂H2DCFDA（Anaspec）测量细胞ROS的变化。对于微孔板实验，HT-22细胞以3000个细胞/孔的密度在96孔板中放置过夜。细胞与药物和20 mM谷氨酸在37°C和5%CO2下孵育12小时。然后移除培养基，用PBS洗涤细胞一次，然后在37°C下在含有10µM H2DCFDA的PBS中孵育30分钟。移除PBS，在KRH中于37°C下再孵育细胞15分钟。在PBS中洗涤细胞两次，使用帝肯Infinite F200平板读数器测量DCF荧光（激发485，发射530）。原始数据表示为RFU。然后根据对照和钙黄绿素AM细胞存活率对DCF荧光进行标准化。对于荧光显微镜，HT-22细胞以10000个细胞/孔的密度铺在6孔板上。细胞在谷氨酸和指定药物中孵育8小时。8小时后，用含有10µM H2DCFDA的KRH培养基替换培养基。细胞在37°C下孵育15分钟，用KRH洗涤一次，然后在37°C下在新鲜KRH中再孵育10分钟。用新鲜的KRH缓冲液替换培养基，并对细胞进行成像。对于流式细胞术，HT-22细胞以50000个细胞/孔的密度接种在6孔培养皿中，并附着过夜。移除培养基，用含有新鲜DMEM（高糖、1 mM丙酮酸盐、10%FBS）的载体、10µM亚甲基蓝（MB）、20 mM谷氨酸盐或10µM亚甲基蓝（MB）。细胞在37°C和5%CO2下孵育8小时。孵育后，取出培养基，用PBS洗涤细胞一次，并在37°C下在含有10µM H2DCFDA的PBS中孵育15分钟。移除PBS，在37°C的PBS中再孵育细胞10分钟。用新鲜PBS替换PBS，用Beckman Coulter FC-500测定DCF荧光。

---

线粒体裂解物氧化试验[4]
在含有500µM H2O2、10µM DCF的10 mM磷酸盐缓冲液（pH=7.4）中，在存在或不存在165µM NADH和线粒体裂解物（19.4µg/ml）的情况下，对四种化合物（亚甲基蓝（MB）、NR、2-氯吩噻嗪和氯丙嗪）进行了测定。在37°C下，在Greiner 96孔黑板上进行30分钟的测定，此时用Tecan Infinite F200板读数器测量DCF荧光（激发485，发射530）。

细胞活力测定[4]
通过钙黄绿素AM和MTT法测定细胞存活率。对于钙黄绿素AM测定，HT-22细胞以3000个细胞/孔的密度接种，并在100µl DMEM（含1 mM丙酮酸和10%FBS的高糖）的96孔板中孵育过夜。向每个孔中加入不同浓度的亚甲基蓝（MB）或其衍生物和20 mM谷氨酸盐，并在37°C和5%CO2下孵育12小时。12小时后，取出培养基，用1µM的钙黄绿素AM PBS溶液替换。细胞在37°C下孵育5分钟，使用帝肯Infinite F200平板读数器测量荧光（激发485发射530）。对于MTT测定，将HT-22细胞以3000个细胞/孔的密度接种到100µl DMEM（高糖、1 mM丙酮酸、10%FBS）中的96孔平底板中，并允许其附着过夜。然后向每个孔中加入不同浓度的药物和20mM谷氨酸盐（或对照孔的培养基）。在37°C和5%CO2的条件下孵育板12小时。从培养箱中取出培养板，每孔加入20µl MTT（PBS中5mg/ml）。轻轻搅拌平板以将MTT混合到培养基中，然后将其放回培养箱中2小时。2小时后，取出培养基，向每个孔中加入100µl DMSO。通过温和搅拌将板混合，并用Tecan Infinite F200板读数器测量吸光度（560nm，参考670nm）。

---

鱼藤酮神经毒性试验[4]
将HT-22细胞以3000个细胞/孔的密度接种到100µl DMEM（高糖、1 mM丙酮酸、10%FBS）中的96孔平底板中，并允许其附着过夜。然后向每个孔中加入不同浓度的亚甲基蓝（MB）或其衍生物和5µM鱼藤酮（或对照孔的培养基）。在37°C和5%CO2的条件下孵育板24小时。通过钙黄绿素AM测定存活率。

---

葡萄糖氧化酶神经毒性试验[4]
将HT-22细胞以3000个细胞/孔的密度接种到100µl DMEM（高糖、1 mM丙酮酸、10%FBS）中的96孔平底板中，并允许其附着过夜。然后向每个孔中加入不同浓度的亚甲基蓝（MB）或其衍生物和2U葡萄糖氧化酶（或对照孔的培养基）。在37°C和5%CO2的条件下孵育板3小时。通过钙黄绿素AM测定存活率。

---

碘乙酸（IAA）神经毒性试验[4]
将HT-22细胞以3000个细胞/孔的密度接种到100µl DMEM（高糖、1 mM丙酮酸、10%FBS）中的96孔平底板中，并允许其附着过夜。然后向每个孔中加入不同浓度的亚甲基蓝（MB）或其衍生物和20µM IAA（或对照孔的培养基）。将培养板在37°C和5%CO2的条件下孵育2小时。2小时后，取出所有培养基，用含有药物但不含IAA的新鲜培养基替换。在37°C和5%CO2的条件下，将平板再孵育22小时。通过钙黄绿素AM测定存活率。

---

蛋白质印迹[4]
HT-22电池以150000/孔的密度镀在6孔板中。细胞附着过夜，第二天以指定浓度向细胞中加入亚甲基蓝（MB）或2-氯吩噻嗪。细胞生长3天，并在含有蛋白酶和磷酸酶抑制剂的放射免疫沉淀试验（RIPA）缓冲液中裂解。将细胞裂解物装载到10%聚丙烯酰胺凝胶上，并转移到硝化纤维上。硝化纤维与第一抗体在4°C下以指定浓度（Cox1，1∶500；肌动蛋白，1∶3000）孵育过夜。与辣根过氧化物酶连接的二抗在室温下孵育2小时（1∶2000稀释）。用UVP Biospectrum 500检测化学发光。

Animal/Disease Models: Male NMRI mice [1]
Doses: 50 and 100 mg/kg
Route of Administration: intraperitoneal (ip) injection; once for 25 minutes
Experimental Results: diminished prepulse inhibition and diminished phencyclidine (PCP)-induced locomotor activity Increase.

---

Animal/Disease Models: CaMKIIα-tTA transactivated mice [2]
Doses: 20 and 40 mg/kg
Route of Administration: Oral; one time/day for 6 months
Experimental Results: Inhibition of Tau aggregation in CaMKIIα-tTA transactivated mice .

---

Animal/Disease Models: TBI-treated male balb/c (Bagg ALBino) mouse [3]
Doses: 2 mg/kg
Route of Administration: intravenous (iv) (iv)injection; once for 1 day
Experimental Results: CD14, IL-1β, TNF-α and CCL2 mRNA levels were diminished.

---

Animal/Disease Models: TBI-treated male balb/c (Bagg ALBino) mouse [3]
Doses: 2 mg/kg
Route of Administration: intravenous (iv) (iv)injection; once for 1 day
Experimental Results: The percentage of bone marrow (CD11b+/GR1+) cells in microglia diminished , IL-1β was diminished and IL-10 expression was enhanced.

Absorption, Distribution and Excretion
Excreted in urine and bile. About 75% of an oral dose excreted in urine, primarily as stabilized colorless leukomethylene blue.
10 mg/kg (in rats).
3.0 ± 0.7 L/min.
... The concentration of methylene blue in whole blood was measured using high-performance liquid chromatography in seven volunteers after IV and oral administration of 100 mg methylene blue with and without mesna. The distribution of methylene blue in different tissues was measured in rats after intraduodenal and IV application. The time course of methylene blue in whole blood after IV administration showed a multiphasic time course with an estimated terminal half-life of 5.25 hr. Following oral administration, the area under the concentration-time curve was much lower (9 nmol/min/mL vs 137 nmol/min/mL). Co-administration of mesna, which could influence distribution by ion-pairing, did not alter the pharmacokinetics. The urinary excretion of methylene blue and its leukoform was only moderately higher after IV administration (18% vs 28% dose). Intraduodenal administration to rats resulted in higher concentrations in intestinal wall and liver but lower concentrations in whole blood and brain than IV methylene blue. Differences in organ distribution of methylene blue are mainly responsible for the different pharmacokinetics after oral and IV administration. ...
Methylene blue is well absorbed from the GI tract, and peak plasma concentrations occur approximately 1-2 hours after an oral dose. ... Following distribution into tissues, methylene blue is rapidly reduced to leukomethylene blue (leucomethylthioninium chloride). Metabolism to leucomethylene blue may be less efficient in neonates than in older individuals. Methylene blue is excreted in urine and bile. About 75% of an oral dose of methylene blue is excreted in urine, mostly as stabilized colorless leukomethylene blue. On exposure to air, the urine turns green or blue, due to the presence of the oxidation product methylene azure (methylene blue sulfone). Some unchanged drug is also excreted in urine.
BACKGROUND: Although blue dye is routinely used for lymphatic mapping, it is not used for lymphatic mapping in pregnancy-associated breast cancer, because of concern of fetal risk. METHODS: To investigate the safety of blue dye for lymphatic mapping in pregnant women, the pharmacokinetics of methylene blue dye were examined in 10 nonpregnant women, and the results were extrapolated to estimate maximal fetal exposure to the dye. RESULTS: Plasma and urine measurements indicated that the dye quickly distributed from the breast injection site to the circulation, with 32% of the total dose excreted in urine within 48 hours. Combined with existing data on organ distribution of methylene blue, the estimated maximal dose to the fetus is 0.25 mg (5% of the administered dose), likely further reduced by other physiologic factors related to pregnancy. CONCLUSIONS: The analysis suggests that methylene blue dye can be used for lymphatic mapping in pregnancy-associated breast cancer with minimal fetal risk.
The disposition and urinary excretion pharmacokinetics of methylene blue were determined after its intravenous administration at 15 mg/kg to mature female sheep. Comparisons were made between methylene blue administered alone or subsequent to 50 mg/kg sodium nitrite. The overall elimination rate constant (beta) of methylene blue, 0.0076 +/- 0.0016 min-1, was not influenced by prior administration of sodium nitrite. However, the distribution rate was significantly altered by sodium nitrite. Very little of the methylene blue was eliminated in the urine either intact or as leukomethylene blue in spite of its relatively short half life. ...

---

Metabolism / Metabolites
Following distribution into tissues, rapidly reduced to leukomethylene blue (leucomethylthioninium chloride). Metabolism to leucomethylene blue may be less efficient in neonates than in older individuals.
Methylene blue can be reduced to a colorless form, leukomethylene blue; together, these compounds form a reversible oxidation-reduction system. In low concentrations, methylene blue accelerates conversion of methemoglobin to hemoglobin. In patients with methemoglobinemia, methylene blue is reduced to leukomethylene blue by methemoglobin reductases in erythrocytes; leukomethylene blue then reduces methemoglobin to hemoglobin. In high concentrations, methylene blue oxidizes the ferrous iron of reduced hemoglobin to the ferric state, thereby changing hemoglobin to methemoglobin.
Following distribution into tissues, methylene blue is rapidly reduced to leukomethylene blue (leucomethylthioninium chloride). Metabolism to leucomethylene blue may be less efficient in neonates than in older individuals.

---

Biological Half-Life
5–6.5 hours (after IV dose).
Following IV administration, the estimated half-life of methylene blue is 5-6.5 hours.
... The concentration of methylene blue in whole blood was measured using high-performance liquid chromatography in seven volunteers after IV and oral administration of 100 mg methylene blue with and without mesna. The distribution of methylene blue in different tissues was measured in rats after intraduodenal and IV application. The time course of methylene blue in whole blood after IV administration showed a multiphasic time course with an estimated terminal half-life of 5.25 hr. ...

Protein Binding
Methylene blue was reported to bind strongly to rabbit plasma (71–77% of bound drug).

---

IDENTIFICATION AND USE: Methylene blue is a solid. Water solutions are deep blue. It is used as a stain in bacteriology, as mixed indicator, a dye, a redox colorimetric agent, and a targeting agent for melanoma. It is also used as a medication to treat drug-induced methemoglobinemia. HUMAN STUDIES: Methemoglobinemia is usually treated with methylene blue. However, in patients with glucose-6-phosphate dehydrogenase deficiency, methylene blue can induce methemoglobinemia. Preclinical studies have shown that low-dose methylene blue increases mitochondrial cytochrome oxidase activity in the brain and improves memory retention after learning tasks, including fear extinction. The intracameral use of 1% methylene blue has a cytotoxic effect on the corneal endothelium and iris epithelium. Several cases of suspected serotonin syndrome have been reported in patients who received methylene blue in combination with serotonin active agents. Allergic hypersensitivity reaction to methylene blue-treated plasma transfusion has also been reported. A preterm infant had methemoglobulinemia and hemolytic anemia after enteral administration of methylene blue. There is epidemiologic evidence that methylene blue is a teratogen, and the drug can cause fetal harm if administered during pregnancy. Use of methylene blue in amniocentesis has been associated with atresia of the ileum and jejunum, ileal occlusion, and other adverse effects in neonates. Use of methylene blue during pregnancy has resulted in hemolytic anemia, hyperbilirubinemia, methemoglobinemia, respiratory distress, skin staining, and phototoxicity in neonates. ANIMAL STUDIES: Methylene blue treatment resulted in methemoglobin formation and oxidative damage to red blood cells, leading to a regenerative anemia and a variety of tissue and biochemical changes secondary to erythrocyte injury. An early change was a dose-related increase in methemoglobin, where the response of rats and mice was similar in magnitude. Mice appeared to be more sensitive than rats to the formation of Heinz bodies and the development of anemia that was characterized by a decrease in hemoglobin, hematocrit, and erythrocyte count. Splenomegaly was apparent in all treated mice and in the 100 mg/kg (males only) and 200 mg/kg rats at necropsy. Methylene blue was embryotoxic in the rat. Methylene blue caused the mice to deliver before gestation day 18 (term gestation). This response was observed in 45%, 50% and 83% of animals receiving methylene blue at 50, 60 or 85 mg/kg, respectively. Under cell-free conditions methylene blue induced DNA damage. It is characterized by a high number of base modifications sensitive to the repair endonuclease FPG protein (formamidopyrimidine-DNA glycosylase). Methylene blue was mutagenic in cultured mammalian cells. In contrast, results from the mouse micronucleus assay suggest that the genotoxicity is not expressed in vivo. The greatest concerns with methylene blue therapy in veterinary use are the development of Heinz body anemia or other red cell morphological changes, methemoglobinemia, and decreased red cell life spans. Cats tent to be very sensitive to these effects and some consider it contraindicated in feline patients, but dogs and horses can also develop hematologic adverse effects at relatively low dosages. ECOTOXICITY STUDIES: Methylene blue had a teratogenic effect in angelfish.

---

Non-Human Toxicity Values LD50 Mouse iv 77 mg/kg
LD50 Mouse ip 150 mg/kg
LD50 Mouse oral 3500 mg/kg
LD50 Rat iv 1250 mg/kg

[1]. Phencyclidine-induced behaviour in mice prevented by methylene blue. Basic Clin Pharmacol Toxicol. 2004 Feb;94(2):65-72.

[2]. Preventive methylene blue treatment preserves cognition in mice expressing full-length pro-aggregant human Tau. Acta Neuropathol Commun. 2015 May 10;3:25.

[3]. Methylene blue attenuates traumatic brain injury-associated neuroinflammation and acute depressive-like behavior in mice. J Neurotrauma. 2015 Jan 15;32(2):127-38.

[4]. Neuroprotective actions of methylene blue and its derivatives. PLoS One . 2012;7(10):e48279.

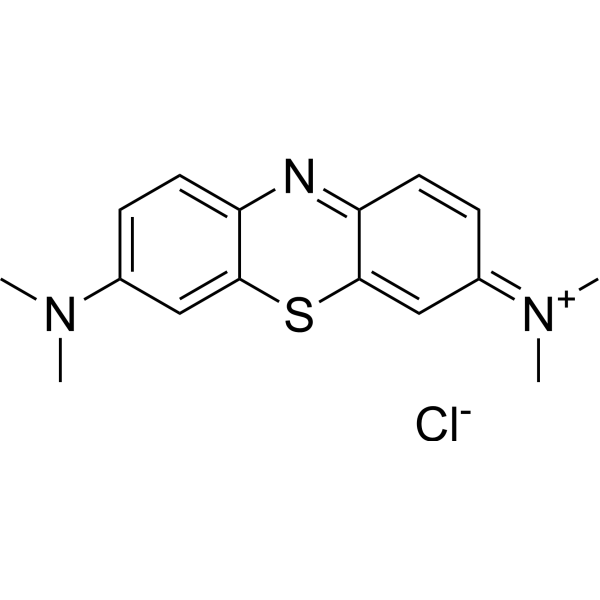

Methylene blue is an organic chloride salt having 3,7-bis(dimethylamino)phenothiazin-5-ium as the counterion. A commonly used dye that also exhibits antioxidant, antimalarial, antidepressant and cardioprotective properties. It has a role as an EC 1.4.3.4 (monoamine oxidase) inhibitor, an acid-base indicator, a fluorochrome, an antidepressant, a cardioprotective agent, an EC 3.1.1.8 (cholinesterase) inhibitor, a histological dye, an EC 4.6.1.2 (guanylate cyclase) inhibitor, an antioxidant, an antimicrobial agent, a neuroprotective agent, a physical tracer and an antimalarial. It contains a 3,7-bis(dimethylamino)phenothiazin-5-ium.
Methylene blue is an oxidation-reduction agent. The intravenous form of methylene blue is approved by the FDA for the treatment of pediatric and adult patients with acquired methemoglobinemia. Historically, it has been widely used in Africa to treat malaria, but now it disappeared when chloroquine (CQ) and other drugs entered the market. Its use as an urinary tract antiseptic has also been investigated. Methylthioninium chloride (INN, or methylene blue, proposed trade name Rember) is an investigational drug being developed by the University of Aberdeen and TauRx Therapeutics that has been shown in early clinical trials to be an inhibitor of Tau protein aggregation. The drug is of potential interest for the treatment of patients with Alzheimer's disease.
Methylene Blue is a synthetic basic dye. Methylene blue stains to negatively charged cell components like nucleic acids; when administered in the lymphatic bed of a tumor during oncologic surgery, methylene blue may stain lymph nodes draining from the tumor, thereby aiding in the visual localization of tumor sentinel lymph nodes. When administered intravenously in low doses, this agent may convert methemoglobin to hemoglobin.
A compound consisting of dark green crystals or crystalline powder, having a bronze-like luster. Solutions in water or alcohol have a deep blue color. Methylene blue is used as a bacteriologic stain and as an indicator. It inhibits GUANYLATE CYCLASE, and has been used to treat cyanide poisoning and to lower levels of METHEMOGLOBIN.

---

Drug Indication
Indicated for the treatment of pediatric and adult patients with acquired methemoglobinemia. Other clinical applications of methylene blue include improvement of hypotension associated with various clinical states, an antiseptic in urinary tract infections, treatment of hypoxia and hyperdynamic circulation in cirrhosis of liver and severe hepatopulmonary syndrome, and treatment of ifofosamide induced neurotoxicity.
Lumeblue is indicated as a diagnostic agent enhancing visualisation of colorectal lesions in adult patients undergoing screening or surveillance colonoscopy.
Acute symptomatic treatment of medicinal and chemical products- induced methaemoglobinaemia. Methylthioninium chloride Proveblue is indicated in adults, children and adolescents (aged 0 to 17 years old).

---

Mechanism of Action
* Main mechanism of action involves inhibition of nitric oxide synthase and guanylate cyclase. * In Alzheimers Disease: a mechanistic study found that methylene blue oxidizes cysteine sulfhydryl groups on tau to keep tau monomeric. One preclinical treatment study in tauopathy mice reported anti-inflammatory or neuroprotective effects mediated by the Nrf2/antioxidant response element (ARE); another reported insoluble tau reduction and a learning and memory benefit when given early. * In Methemoglobinemia: Methylene Blue acts by reacting within RBC to form leukomethylene blue, which is a reducing agent of oxidized hemoglobin converting the ferric ion (fe+++) back to its oxygen-carrying ferrous state(fe++). * As antimalarial agent: Methylene Blue, a specific inhibitor of P.falciparum glutathione reductase has the potential to reverse CQ resistance and it prevents the polymerization of haem into haemozoin similar to 4-amino-quinoline antimalarials. * For ifosfamide induced neurotoxicity: Methylene blue functions as an alternate electron acceptor. It acts to reverse the NADH inhibition caused by gluconeogenesis in the liver while blocking the transformation of chloroethylamine into chloroacetaldehyde. In addition, it inhibits various amine oxidase activities, which also prevents the formation of chloroacetaldehyde.
The mechanism of modulation of cyclic guanosine monophosphate accumulation by methylene blue, a putative inhibitor of soluble guanylate cyclase, was investigated in cultured rabbit pulmonary arterial smooth muscle cells. Control or methylene blue pretreated rabbit pulmonary arterial smooth muscle were stimulated with sodium nitroprusside, nitrosothiols or endothelium derived relaxing factor released basally from bovine pulmonary arterial endothelial cells, in short term cocultures. The putative endothelium-derived relaxing factor, S-nitroso-L-cysteine, a stab1e deaminated analog of S-nitroso-L-cysteine, S-nitroso-3-mercaptoproprionic acid and sodium nitroprusside produced concentration-dependent (1-100 uM) increase (1.5- to 12-fold) in rabbit pulmonary arterial smooth muscle cells cyclic guanosine monophospate levels. Methylene blue pretreatment inhibited S-nitroso-L-cysteine and sodium nitroprusside induced cyclic guanosine monophosphate accumulation by 51% to 100%, but S-nitroso-3-mercaptoproprionic acid mediated responses were not altered by methylene blue. The inhibition profile of methylene blue on nitrovasodilator induced cyclic guanosine monophosphate accumulation was quantitatively reproduced by extracellular generation of superoxide anion with xanthine (100 uM) and xanthine oxidase (5 mU). Similarly to methylene blue pretreatment, superoxide anion generation had no effects on base-line cyclic guanosine phosphate levels or cyclic guanosine phosphate responses elicited by S-nitroso-3-mercaptoproprionic acid. Furthermore, methylene blue induced a dose and time dependent generation of superoxide anion from rabbit pulmonary arterial smooth muscle cells, as evidenced from spectrophotometric determination of cytochrome c reduction. Inhibition of cyclic guanosine monophosphate accumulation in response to S-nitroso-L-cysteine and sodium nitroprusside by methylene blue was completely prevented by superoxide dismutase but not catalase. Selective pretreatment of endothelial cells with methylene blue before co-culture with untreated rabbit pulmonary arterial smooth muscle produced a reduction in rabbit pulmonary arterial smooth muscle cyclic guanosine monophosphate levels of a magnitude comparable with that seen in cocultures of methylene blue pretreated rabbit pulmonary arterial smooth muscle with untreated endothelial cells, and which was partially prevented by superoxide dismutase.

---

Schizophrenia is a major public health problem that affects approximately 1% of the population worldwide. Schizophrenia-like symptoms can be induced in humans by phencyclidine (PCP), a drug with marked psychotomimetic properties. Phencyclidine disrupts prepulse inhibition of acoustic startle in rodents, a measure which has also been shown to be disrupted in schizophrenic patients. This effect is blocked by nitric oxide synthase (NOS) inhibitors, suggesting that nitric oxide plays an important role in this effect of phencyclidine. Methylene blue, a guanylate cyclase and nitric oxide syntase inhibitor, has shown therapeutic value as an adjuvant to conventional antipsychotics in the therapy of schizophrenia. The aim of the present study was to investigate if phencyclidine-(4 mg/kg)induced disruption of prepulse inhibition could be affected by methylene blue (50 or 100 mg/kg) in mice. Furthermore, the effect of methylene blue (50 mg/kg) on phencyclidine-(4 mg/kg)induced hyperlocomotion was investigated. The present study shows that phencyclidine readily disrupts prepulse inhibition in mice without affecting pulse-alone trials. It was also found that methylene blue prevents the decrease in prepulse inhibition caused by phencyclidine in a dose-related manner. Furthermore, the increase in locomotor activity caused by phencyclidine was reduced by pretreatment with methylene blue. The results from the present study further support the suggestion that the nitric oxide synthase/guanylate cyclase pathway is involved in pharmacological and behavioural effects of phencyclidine. Since phencyclidine as well exerts psychotomimetic characteristics, agents that interfere with the nitric oxide synthase/guanylate cyclase pathway may be of therapeutic value also in the treatment of schizophrenia.[1]

---

Introduction: Neurofibrillary tangles (NFT) composed of Tau are hallmarks of neurodegeneration in Alzheimer disease. Transgenic mice expressing full-length pro-aggregant human Tau (2N4R Tau-ΔK280, termed Tau(ΔK)) or its repeat domain (TauRD-ΔK280, TauRD(ΔK)) develop a progressive Tau pathology with missorting, phosphorylation, aggregation of Tau, loss of synapses and functional deficits. Whereas TauRD(ΔK) assembles into NFT concomitant with neuronal death, Tau(ΔK) accumulates into Tau pretangles without overt neuronal loss. Both forms cause a comparable cognitive decline (with onset at 10mo and 12mo, respectively), which is rescued upon switch-off of transgene expression. Since methylene blue (MB) is able to inhibit Tau aggregation in vitro, we investigated whether MB can prevent or rescue Tau-induced cognitive impairments in our mouse models. Both types of mice received MB orally using different preventive and therapeutic treatment protocols, initiated either before or after disease onset. The cognitive status of the mice was assessed by behavior tasks (open field, Morris water maze) to determine the most successful conditions for therapeutic intervention. Results: Preventive and therapeutic MB application failed to avert or recover learning and memory deficits of TauRD(ΔK) mice. Similarly, therapeutic MB treatment initiated after onset of cognitive impairments was ineffective in Tau(ΔK) mice. In contrast, preventive MB application starting before onset of functional deficits preserved cognition of Tau(ΔK) mice. Beside improved learning and memory, MB-treated Tau(ΔK) mice showed a strong decrease of insoluble Tau, a reduction of conformationally changed (MC1) and phosphorylated Tau species (AT180, PHF1) as well as an upregulation of protein degradation systems (autophagy and proteasome). This argues for additional pleiotropic effects of MB beyond its properties as Tau aggregation inhibitor. Conclusions: Our data support the use of Tau aggregation inhibitors as potential drugs for the treatment of AD and other tauopathies and highlights the need for preventive treatment before onset of cognitive impairments.[2]

---

Traumatic brain injury (TBI) is associated with cerebral edema, blood brain barrier breakdown, and neuroinflammation that contribute to the degree of injury severity and functional recovery. Unfortunately, there are no effective proactive treatments for limiting immediate or long-term consequences of TBI. Therefore, the objective of this study was to determine the efficacy of methylene blue (MB), an antioxidant agent, in reducing inflammation and behavioral complications associated with a diffuse brain injury. Here we show that immediate MB infusion (intravenous; 15-30 minutes after TBI) reduced cerebral edema, attenuated microglial activation and reduced neuroinflammation, and improved behavioral recovery after midline fluid percussion injury in mice. Specifically, TBI-associated edema and inflammatory gene expression in the hippocampus were significantly reduced by MB at 1 d post injury. Moreover, MB intervention attenuated TBI-induced inflammatory gene expression (interleukin [IL]-1β, tumor necrosis factor α) in enriched microglia/macrophages 1 d post injury. Cell culture experiments with lipopolysaccharide-activated BV2 microglia confirmed that MB treatment directly reduced IL-1β and increased IL-10 messenger ribonucleic acid in microglia. Last, functional recovery and depressive-like behavior were assessed up to one week after TBI. MB intervention did not prevent TBI-induced reductions in body weight or motor coordination 1-7 d post injury. Nonetheless, MB attenuated the development of acute depressive-like behavior at 7 d post injury. Taken together, immediate intervention with MB was effective in reducing neuroinflammation and improving behavioral recovery after diffuse brain injury. Thus, MB intervention may reduce life-threatening complications of TBI, including edema and neuroinflammation, and protect against the development of neuropsychiatric complications.[3]

C16H18CLN3S

319.85222

319.091

C, 60.08; H, 5.67; Cl, 11.08; N, 13.14; S, 10.02

61-73-4

Methylene blue trihydrate;7220-79-3;Methylene blue hydrate;122965-43-9; 61-73-4 (Cl)

6099

Reddish brown to brown solid powder

1.0 g/mL at 20 °C

190 °C (dec.)(lit.)

45 °C

47.38

0

4

1

21

483

0

CXKWCBBOMKCUKX-UHFFFAOYSA-M

InChI=1S/C16H18N3S.ClH/c1-18(2)11-5-7-13-15(9-11)20-16-10-12(19(3)4)6-8-14(16)17-13;/h5-10H,1-4H3;1H/q+1;/p-1

[7-(dimethylamino)phenothiazin-3-ylidene]-dimethylazanium;chloride

CI52015; 61-73-4; Basic blue 9; Methylthioninium chloride; Solvent blue 8; Swiss Blue; Methylene Blue anhydrous; Chromosmon; Methylene blue

2934.99.9001

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

注意： 请将本产品存放在密封且受保护的环境中（例如氮气保护），避免吸湿/受潮和光照。

Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

H2O : ~50 mg/mL (~156.32 mM)

注意: 如下所列的是一些常用的体内动物实验溶解配方，主要用于溶解难溶或不溶于水的产品（水溶度<1 mg/mL）。 建议您先取少量样品进行尝试，如该配方可行，再根据实验需求增加样品量。

---

注射用配方1: DMSO : Tween 80： Saline = 10 : 5 : 85 (如： 100 μL DMSO → 50 μL Tween 80 → 850 μL Saline)
*生理盐水/Saline的制备：将0.9g氯化钠/NaCl溶解在100 mL ddH ₂ O中，得到澄清溶液。
注射用配方 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (如： 100 μL DMSO → 400 μL PEG300 → 50 μL Tween 80 → 450 μL Saline)
注射用配方 3: DMSO : Corn oil = 10 : 90 (如： 100 μL DMSO → 900 μL Corn oil)
示例: 以注射用配方 3 (DMSO : Corn oil = 10 : 90) 为例说明, 如果要配制 1 mL 2.5 mg/mL的工作液, 您可以取 100 μL 25 mg/mL 澄清的 DMSO 储备液，加到 900 μL Corn oil/玉米油中, 混合均匀。

View More

注射用配方 4: DMSO : 20% SBE-β-CD in Saline = 10 : 90 [如：100 μL DMSO → 900 μL (20% SBE-β-CD in Saline)]
*20% SBE-β-CD in Saline的制备（4°C，储存1周）：将2g SBE-β-CD (磺丁基-β-环糊精) 溶解于10mL生理盐水中，得到澄清溶液。
注射用配方 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (如： 500 μL 2-Hydroxypropyl-β-cyclodextrin (羟丙基环胡精)→ 500 μL Saline)
注射用配方 6: DMSO : PEG300 : Castor oil : Saline = 5 : 10 : 20 : 65 (如： 50 μL DMSO → 100 μL PEG300 → 200 μL Castor oil → 650 μL Saline)
注射用配方 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (如： 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline)
注射用配方 8: 溶解于Cremophor/Ethanol (50 : 50), 然后用生理盐水稀释。
注射用配方 9: EtOH : Corn oil = 10 : 90 (如： 100 μL EtOH → 900 μL Corn oil)
注射用配方 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (如： 100 μL EtOH → 400 μL PEG300 → 50 μL Tween 80 → 450 μL Saline)

---

口服配方 1: 悬浮于0.5% CMC Na (羧甲基纤维素钠)
口服配方 2: 悬浮于0.5% Carboxymethyl cellulose (羧甲基纤维素)
示例: 以口服配方 1 (悬浮于 0.5% CMC Na)为例说明, 如果要配制 100 mL 2.5 mg/mL 的工作液, 您可以先取0.5g CMC Na并将其溶解于100mL ddH2O中，得到0.5%CMC-Na澄清溶液；然后将250 mg待测化合物加到100 mL前述 0.5%CMC Na溶液中，得到悬浮液。

View More

口服配方 3: 溶解于 PEG400 (聚乙二醇400)
口服配方 4: 悬浮于0.2% Carboxymethyl cellulose (羧甲基纤维素)
口服配方 5: 溶解于0.25% Tween 80 and 0.5% Carboxymethyl cellulose (羧甲基纤维素)
口服配方 6: 做成粉末与食物混合

---

注意: 以上为较为常见方法，仅供参考， InvivoChem并未独立验证这些配方的准确性。具体溶剂的选择首先应参照文献已报道溶解方法、配方或剂型，对于某些尚未有文献报道溶解方法的化合物，需通过前期实验来确定（建议先取少量样品进行尝试），包括产品的溶解情况、梯度设置、动物的耐受性等。

---

请根据您的实验动物和给药方式选择适当的溶解配方/方案：
1、请先配制澄清的储备液(如：用DMSO配置50 或 100 mg/mL母液(储备液));
2、取适量母液，按从左到右的顺序依次添加助溶剂，澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明，并不一定代表此产品 的实际溶解配方):
10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline);
假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀/澄清；向上述体系中加入50 μL Tween-80，混合均匀/澄清；然后继续加入450 μL ddH2O (或 saline)定容至 1 mL；
3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例;
4、 如产品在配制过程中出现沉淀/析出，可通过加热(≤50℃)或超声的方式助溶;
5、为保证最佳实验结果，工作液请现配现用！
6、如不确定怎么将母液配置成体内动物实验的工作液，请查看说明书或联系我们;
7、 以上所有助溶剂都可在 Invivochem.cn网站购买。
