DYRK1 DYRK1A 0.0062 μM (IC50) GSK3β >50 μM (IC50)

GNF2133（30 mg/kg；口服）的口服生物利用度为 22.3%，口服吸收良好。[1]。 GNF2133（30 mg/kg；口服；每天一次，持续五天）表现出体内 β 细胞增殖[1]。在 RIP-DTA 小鼠中，GNF2133（3、10、30 mg/kg）显着增加胰岛素分泌和葡萄糖处理能力[1]。 GNF2133在CD-1小鼠中的药代动力学参数[1]。血浆 (iv) 胰腺 (po) 和血浆 (po) CL，单位为毫升/分钟/千克 23.5 // Vss (L/kg) AUC (h·nM) 3268 10974 144420 Clast(nM) 36.6 19 1324 t1/2<( h) Cmax(nM) 1977 1675 13319 tmax<(h) 0.03 3.0 3.0 30 mg/kg；宝[1]； 6.6 3.4 6.6 F (%) / 22.3 / CD-1 小鼠。

Animal/Disease Models: CD-1 mice[1]
Doses: 30 mg/kg
Route of Administration: Po
Experimental Results: demonstrated good oral absorption and moderate plasma exposure with oral bioavailability of 22.3%.

---

Animal/Disease Models: Wistar Han rat[1]
Doses: 30 mg/kg (0.5% methylcellulose + Tween-80)
Route of Administration: Po; one time/day for 5 days
Experimental Results: Increased cyclin D1 levels and overall cell density, and increased in cell proliferation marker Ki67 and insulin.

---

Animal/Disease Models: Diphtheria toxin A (RIP-DTA) mice[1]
Doses: 3, 10, 30 mg/kg (20 mg/kg doxycycline (Dox) for 5 days)
Route of Administration: Po, one time/day for 35 days
Experimental Results: Dramatically improves glucose disposal capacity and increased insulin secretion.

[1]. Liu YA, et al. Selective DYRK1A Inhibitor for the Treatment of Type 1 Diabetes: Discovery of 6-Azaindole Derivative GNF2133. J Med Chem. 2020 Mar 26;63(6):2958-2973.

C24H30N6O2

434.53

2561414-56-8

GNF2133 hydrochloride;2561414-57-9

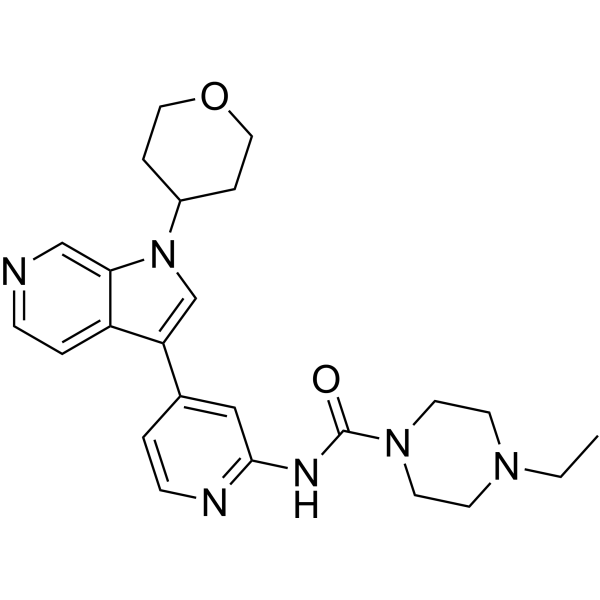

N(C1N=CC=C(C2=CN(C3CCOCC3)C3=CN=CC=C23)C=1)C(N1CCN(CC)CC1)=O

DMSO: 4 mg/mL (9.21 mM)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples.

---

Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline)
*Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution.
Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline)
Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil)
Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals).

View More

Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)]
*Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.
Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline)
Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline)
Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline)
Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline
Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil)
Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline)

---

Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium)
Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose
Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals).

View More

Oral Formulation 3: Dissolved in PEG400
Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose
Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose
Oral Formulation 6: Mixing with food powders

---

Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.

---

请根据您的实验动物和给药方式选择适当的溶解配方/方案：
1、请先配制澄清的储备液(如：用DMSO配置50 或 100 mg/mL母液(储备液));
2、取适量母液，按从左到右的顺序依次添加助溶剂，澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明，并不一定代表此产品 的实际溶解配方):
10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline);
假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀/澄清；向上述体系中加入50 μL Tween-80，混合均匀/澄清；然后继续加入450 μL ddH2O (或 saline)定容至 1 mL；
3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例;
4、 如产品在配制过程中出现沉淀/析出，可通过加热(≤50℃)或超声的方式助溶;
5、为保证最佳实验结果，工作液请现配现用！
6、如不确定怎么将母液配置成体内动物实验的工作液，请查看说明书或联系我们;
7、 以上所有助溶剂都可在 Invivochem.cn网站购买。
