VEGFR2 (IC50 = 6.5 nM); VEGFR3 (IC50 = 15 nM); EphB2 (IC50 = 24 nM); VEGFR1 (IC50 = 30 nM); PDGFRα (IC50 = 40 nM)

Tivozanib 可防止 VEGFR-1、VEGFR-2 和 VEGFR-3 被磷酸化 [2]。
AV-951是一种新型的尿素和喹啉衍生物。AV-951可阻止内皮细胞增殖和vegf依赖性的有丝分裂原活化蛋白激酶的激活。[1]
KRN951是一种针对vegfr的新型酪氨酸激酶抑制剂，具有抗肿瘤血管生成和抗生长活性。KRN951在体外亚纳摩尔IC50值（IC50 = 0.16 nmol/L）下有效抑制内皮细胞中vegf诱导的VEGFR-2磷酸化。它还能抑制配体诱导的血小板衍生生长因子受体β (pdgfr - β)和c-Kit的磷酸化（IC50分别为1.72和1.63 nmol/L）。KRN951阻断了vegf依赖性而非非依赖性的丝裂原活化蛋白激酶的激活和内皮细胞的增殖。此外，还能抑制vegf介导的人脐静脉内皮细胞的迁移。[１]

盐酸替沃扎尼水合物（1 mg/kg；口服；14天）可以抑制CNV病变的发展，并显着消解已形成的CNV，使受影响的面积减少67.7%[4]。
体内研究表明，特别是口服剂量为1mg /kg的AV-951，还可以降低肿瘤异种移植物的微血管密度并抑制VEGFR2磷酸化水平。在胸腺发育不全的大鼠中，AV-951几乎完全抑制异种肿瘤的生长（TGI>85%）。[1]另一项使用大鼠腹膜播散性肿瘤模型的研究表明，AV-951可以延长荷瘤大鼠MST后的生存期，最长可达53.5天。当应用于各种人类肿瘤异种移植物，如肺癌、乳腺癌、结肠癌、卵巢癌、胰腺癌和前列腺癌时，AV-951表现出抗肿瘤活性。[2]

---

给胸大鼠po后，KRN951降低了异种肿瘤移植物内的微血管密度，并减弱了肿瘤内皮中VEGFR-2的磷酸化水平。它也显示抗肿瘤活性，对多种人类肿瘤异种移植物，包括肺癌，乳腺癌，结肠癌，卵巢癌，胰腺癌和前列腺癌。此外，动态对比增强磁共振成像（DCE-MRI）分析显示，肿瘤血管高通透性的显著降低与KRN951的抗肿瘤活性密切相关。这些发现表明，KRN951是一种高效的抗血管生成和抗肿瘤药物，DCE-MRI将有助于在临床环境中检测KRN951的早期反应。KRN951目前处于I期临床开发阶段，用于治疗晚期癌症患者。[1]

AV-951 针对各种重组受体和非受体酪氨酸激酶（例如 VEGFR1、VEGFR2、VEGFR3、c-Kit、PDGFRβ、Flt-3 和 FGFR1）的 IC50 值通过使用 1 进行四次无细胞激酶测定来确定。 μM ATP。

---

激酶选择性。[1]
在1 μmol/L ATP条件下进行四次无细胞激酶试验，测定Tivozanib (AV951; KRN-951)的IC50值；Tivozanib (AV951; KRN-951)抗多种重组受体和非受体酪氨酸激酶。重组酶来自ProQinase GmbH。 [1]
以细胞为基础的试验确定Tivozanib (AV951; KRN-951)；如前所述，Tivozanib (AV951; KRN-951)抑制受体酪氨酸激酶的配体依赖性磷酸化。简单地说，将细胞在含有0.5%胎牛血清（FBS）的适当基本培养基中饥饿过夜。加入Tivozanib (AV951; KRN-951)或0.1% DMSO后，细胞孵育1小时，然后用同源配体在37℃下刺激。除VEGFR-3（10分钟）、c-Met（10分钟）和c-Kit（15分钟）外，受体磷酸化诱导时间为5分钟。除VEGF-C（一种大鼠重组蛋白）外，实验中使用的所有配体均为人重组蛋白。细胞裂解后，用适当的抗体对受体进行免疫沉淀，并用磷酸酪氨酸进行免疫印迹。印迹的定量和IC50值的计算如前所述进行。 [1]

---

丝裂原活化蛋白激酶活化。[1]
按照前面的描述对其进行了评估。简单地说，HUVECs在含有0.5% FBS的基本培养基（EBM-2）中饥饿16小时。Tivozanib (AV951; KRN-951)作用1小时，用50 ng/mL VEGF、25 ng/mL碱性成纤维细胞生长因子或20 ng/mL EGF刺激HUVECs。细胞裂解液进行SDS-PAGE，然后用磷酸化的p44/42丝裂原活化蛋白激酶（MAPK）抗体对磷酸化的MAPKs进行免疫印迹。[1]

---

通透性试验和VEGFR‐2磷酸化检测。[2]
恶性腹水对内皮细胞通透性和VEGFR‐2磷酸化的影响，以及Tivozanib (AV951；KRN-951)对这些影响进行了评价。将第25天从经载体处理的腹膜播散性肿瘤模型中采集的腹水样本进行汇总，并将所得上清用于这些实验。我们检查碘化丙啶摄取作为通透性的措施在体外测定。western blotting检测VEGFR‐2磷酸化水平。为了进行渗透性试验，将HUVEC培养在90%的融合度下，在含有0.5%胎牛血清的基本培养基（EBM‐2）中进行血清饥饿过夜。然后用磷酸盐缓冲盐水、恶性腹水和10 nM浓度的Tivozanib (AV951; KRN-951)；培养板中加入Tivozanib (AV951; KRN-951)。单独培养基或50 ng/mL无腹水的VEGF作为内部对照。孵育7 h后，收获细胞，碘化丙啶（1µg/mL）处理，进行FACS分析。通过测定HUVEC对碘化丙啶的吸收来评估其通透性。对于western blotting，除了用腹水刺激时间为10分钟外，采用相同的方法处理HUVEC。细胞裂解后，用抗VEGFR - 2抗体免疫沉淀VEGFR蛋白，然后用抗磷酸酪氨酸抗体免疫印迹，如前所述。［2］

使用基于人脐静脉内皮细胞 (HUVEC) 和正常人真皮成纤维细胞的测定来评估 Tivozanib (AV951/KRN-951) 抑制酪氨酸激酶受体配体依赖性磷酸化的能力。在含有 0.5% 胎牛血清 (FBS) 的适当基础培养基中，细胞在第二天处于饥饿状态。将细胞与 Tivozanib (AV951/KRN-951) 或 0.1% DMSO 一起孵育一小时后，在 37 °C 下用同源配体刺激。除了 VEGFR3、c-Met 和 c-Kit 分别诱导 10 分钟和 15 分钟外，受体磷酸化持续 5 分钟。 VEGF-C 是一种大鼠重组蛋白，是检测中使用的唯一非人重组蛋白的配体。细胞裂解后，用适当的抗体进行免疫沉淀后，对受体进行磷酸酪氨酸免疫印迹。印迹定量和IC50值计算均已完成。

---

内皮细胞增殖。[1]
将HUVECs接种于含5% FBS的M-199中，以4000个细胞/200 μL/孔的密度接种于胶原包被的96孔板中。24小时后，加入Tivozanib (AV951/KRN-951)，然后加入20 ng/mL VEGF或10 ng/mL bFGF，培养72小时。加入胸腺嘧啶（1 μCi/mL） [3H]，继续培养12小时。然后收集细胞，用液体闪烁计数器测量其放射性。[1]

---

趋化性分析。[1]
采用96孔微室板评估HUVEC迁移。细胞在含有0.1%牛血清白蛋白（BSA）的EBM-2中饥饿5小时。然后，收集细胞，在含有0.1% BSA的EBM-2中重悬，并置于上腔。将含有10 ng/mL VEGF、0.1% FBS和0.1% BSA的培养基置于底室，开始细胞迁移。当有指示时，在上、下腔均加入Tivozanib (AV951/KRN-951)。孵育22 h后，用4 μg/mL钙黄素AM染色HBSS细胞。在激发/发射波长为485/530 nm的荧光板阅读器中，通过腔室底部直接测量通过荧光阻断膜孔迁移的细胞的荧光。[1]

---

细胞毒性检测。[1]
这些试验按前面所述进行。简单地说，将细胞接种于96孔板中，并在含有10%胎牛血清的培养基中培养。在开始培养后约24小时加入Tivozanib (AV951/KRN-951)，细胞孵育72小时。采用WST-1试剂检测细胞活力[1]。

Mice: The athymic rats receive a subcutaneous injection of cancer cells in their right flank. Tumors up to 1,500 mm3 are surgically removed, and smaller pieces (20–30 mg) are s.c. implanted into the right flank of rats exposed to radiation. Beginning on day zero of randomization, oral administration of KRN951 (0.2 or 1 mg/kg) or the vehicle is administered. Using Vernier calipers, tumor volume is measured and computed twice a week.

---

Tumor xenograft models. Athymic rats (RH-rnu/rnu) were used. Twenty-four hours after whole body irradiation with a γ-source (7 Gy, Co60), cancer cells were s.c. inoculated into the right flank of the rats. Once established, tumors of ∼1,500 mm3 were surgically excised and smaller tumor fragments (20-30 mg) were s.c. implanted in the right flank of irradiated rats. Oral administration of Tivozanib (AV951/KRN-951) (0.2 or 1 mg/kg) or vehicle was initiated at the day of randomization (day 0). Tumor volume was measured twice weekly with Vernier calipers, and calculated as (length × width2) × 0.5. Relative tumor volume (RTV) was calculated by the formula: RTV at day x = tumor volume at day x / tumor volume at day 0. Percentage tumor growth inhibition (TGI%) was calculated as described previously. Statistical analysis of RTV was done using the unpaired t test. DCE-MRI. Athymic rats (RH-rnu/rnu) were s.c. implanted with fresh Calu-6 tumor fragments. Rats were randomized when the tumors reached a volume of 274 to 287 mm3 (day −1). Once-daily p.o. administration of Tivozanib (AV951/KRN-951) or vehicle was initiated the day after randomization (day 0) and continued for 2 weeks (days 0-13). MRI experiments were carried out at 1.5 T on a whole body magnet equipped with a flexible receiver coil (circularly polarized). DCE-MRI acquisitions were done on day −1 (before the start of treatment), day 2, day 13, and day 21. On days 2 and 13, the rats were imaged 4 hours after p.o. administration of Tivozanib (AV951/KRN-951). The rat tail vein was cannulated for contrast agent injection before placing the animals in the magnet. During the experiment, rats were anesthetized by an i.m. injection of a mixture of ketamine and xylazine (2/1, v/v, 70 and 15 mg/kg, respectively). The anesthetized rats were placed in a cradle supine position inside the resonator. The exact position of the rats was assessed by a scout imaging sequence. [1]

---

Measurement of tumor vessel diameter. During the MRI study, an additional three groups of Calu-6 tumor-bearing rats (RH-rnu/rnu, three rats per group) were used for measurement of tumor vessel diameter using the fluorescent dye H33342 (24). Rats were treated with Tivozanib (AV951/KRN-951) (0.2 or 1 mg/kg) or vehicle for 14 days (from day 0 to day 13) and were sacrificed 1 minute after the i.v. injection of H33342 (20 mg/kg) at day 13. The tumors were removed and 10 μm cryosections prepared from five levels of each tumor separated by at least 200 μm. Tumor sections were studied under UV illumination using a Nikon epifluorescence microscope to identify blood vessels with a surrounding halo of fluorescent H33342-labeled cells. The lumen enclosed by the halos was measured as the vessel diameter using Win ROOF software. Statistical analysis was done using the Mann-Whitney test.[1]

---

Histologic analysis of smooth muscle actin–positive pericyte coverage of tumor vessels. Calu-6 tumor xenografts were established in athymic rats by s.c. implantation of cells. Rats were randomized when tumor volumes reached an average of 273 to 275 mm3 and then treated p.o. with Tivozanib (AV951/KRN-951) or vehicle for 2 weeks. Immunofluorescence staining of pericytes in tumors was done with Cy3-conjugated monoclonal anti-α-smooth muscle actin antibody following the staining of endothelial cells with anti-CD31 antibody. Tissue images were captured digitally at ×100 magnification with LSM 510 systems. Six fields per section (0.8489 mm2 each) were randomly analyzed, excluding peripheral surrounding connective tissues and central necrotic tissues. The number of CD31-positive objects and those surrounded by the region positive for α-smooth muscle actin were quantified using Win ROOF software after blind-coding the histology slides to avoid operator bias.[1]

---

Pharmacokinetic analysis of Tivozanib (AV951/KRN-951). Athymic rats (F344/N JcL-rnu, four females per group) received Tivozanib (AV951/KRN-951) p.o. and blood samples were collected from their tail vein at predetermined intervals up to 72 hours postdose. An appropriate amount of internal standard material, KRN633, was added to each serum sample. Serum samples were deproteinated with acetonitrile and supernatants were analyzed by high-performance liquid chromatography–tandem mass spectrometry. Pharmacokinetic variables were calculated by noncompartmental analysis. The serum concentration of Tivozanib (AV951/KRN-951) at steady state after repeated p.o. administrations of a 0.2 mg/kg dose was simulated as described previously [1]

---

Tivozanib (AV951/KRN-951) was suspended in vehicle (0.5% methyl cellulose in distilled water) and stored at 4°C. Fresh solutions were prepared weekly.[2]
Experimental design.  Rats inoculated with RCN‐9 cells were assigned randomly to three groups and given daily oral doses of Tivozanib (AV951/KRN-951) (1 or 3 mg/kg) or a 0.5% methylcellulose vehicle control. These treatments commenced at 4 or 14 days after tumor transplantation, and continued for 10 or 11 days, respectively. At the end of the treatment periods, the rats were killed and tumor progression was evaluated. Ascites were also collected and their volumes were measured. Each transparent window in the mesentery surrounded by fatty tissue was observed microscopically. The percentages of the mesenteric windows with a vasculature and the number of tumor nodules with or without a vasculature on the mesenteric windows were then counted. [2]
In a subsequent survival study, rats inoculated with RCN‐9 cells were assigned randomly to vehicle‐treated or 1 mg/kg Tivozanib (AV951/KRN-951)‐treated groups (n = 10 per group). Separate treatments then commenced from the day of tumor inoculation or at 14 days after this transplantation. The results were plotted using Kaplan–Meier methods and the differences in survival were analyzed by log‐rank test. A P‐value of <0.05 was considered statistically significant. [2]

---

Tumor vessel imaging.  RCN‐9 cell‐inoculated rats with and without Tivozanib (AV951/KRN-951) treatment were anesthetized and injected intravenously with fluorescein isothiocyanate‐labeled dextran (molecular weight 200 000). After the animals had been killed, the mesenteries were fixed with 4% paraformaldehyde and placed on glass slides. The vasculature associated with each mesenteric window was then photographed microscopically. The number of vessel joints and paths (as vessel bifurcation characteristics), the areas and lengths of vessels (as the angiogenesis density), and the tortuosity of the vasculatures were recorded objectively and evaluated quantitatively using an angiogenesis image analyzer (Kurabo, Osaka, Japan). Four rats were used in these experiments from each group and 12–15 different fields from each animal were analyzed. [2]

Absorption, Distribution and Excretion
The median time to peak concentration (Tmax) of tevozanib is 10 hours, but it can range from 3 to 24 hours. A pharmacokinetic study in 8 healthy subjects showed that the Cmax and AUC of radiolabeled tevozanib were 12.1 ± 5.67 ng/mL and 1084 ± 417.0 ng·h/mL, respectively. Steady-state concentrations of tevozanib are reached at concentrations 6–7 times the normal dose. Tevozanib is primarily excreted in feces. Following oral administration of 1.34 mg of radiolabeled tevozanib to healthy volunteers, 79% of the administered dose was found in feces (26% of which was the unchanged drug), and 12% was found only as metabolites in urine. The apparent volume of distribution (V/F) of tevozanib is 123 L.
The apparent clearance (CL/F) of tevozanib is approximately 0.75 L/h.

Metabolism/Metabolites

Tevozanib is primarily metabolized via CYP3A4. Following oral administration of 1.34 mg of radiolabeled tevozanib to healthy volunteers, 90% of the radiopharmaceutical detected in serum was unmetabolized tevozanib.

Biological Half-Life

According to prescribing information, the half-life of tevozanib is approximately 111 hours. Clinical study data show a half-life of 4–5 days.

Hepatotoxicity
In published pre-registration clinical trials of tevozanib, the incidence of elevated serum ALT or AST levels ranged from 10% to 29%, with 1% to 4% of treated patients experiencing ALT or AST levels exceeding 5 times the upper limit of normal (ULN). Some clinical trials have reported cases of clinically significant liver injury, including death from liver failure, but all cases were attributed to liver metastases or other underlying liver diseases. Since tevozanib's approval and wider clinical application, no clinically significant liver injury or liver failure has been reported, but its clinical use remains limited. Probability score: E (Unproven but suspected cause of clinically significant liver injury). Protein Binding In vitro studies have shown that tevozanib is primarily bound to albumin, with a binding rate ≥99%.

[1]. Cancer Res. 2006 Sep 15;66(18):9134-42.

[2]. Cancer Sci. 2008 Mar;99(3):623-30.

Tevozanib hydrochloride is the hydrochloride salt of tevozanib, an orally bioavailable inhibitor of vascular endothelial growth factor receptors (VEGFR) 1, 2, and 3 with potential anti-angiogenic and antitumor activities. Tevozanib binds to and inhibits the activity of VEGFR 1, 2, and 3, thereby inhibiting endothelial cell migration and proliferation, suppressing tumor angiogenesis, and leading to tumor cell death. VEGFR tyrosine kinases are frequently overexpressed in various tumor cell types and play a crucial role in angiogenesis.
See also: Tevozanib (containing the active fraction).
Indications
Fotivda is indicated for the first-line treatment of adult patients with advanced renal cell carcinoma (RCC), and for adult patients with advanced RCC whose disease has progressed after prior cytokine therapy and who have not received VEGFR and mTOR pathway inhibitor therapy. It is used to treat advanced renal cell carcinoma. 1-[2-chloro-4-[(6,7-dimethoxy-4-quinolinyl)oxy]phenyl]-3-(5-methyl-3-isoxazolyl)urea is an aromatic ether. Renal cell carcinoma (RCC) accounts for 3% of cancer cases and is one of the top ten most common cancers in adults. The average age of diagnosis is between 65 and 74 years. Tivozanib, also known as FOTIVDA, is a kinase inhibitor used to treat adult patients with relapsed or refractory advanced renal cell carcinoma (RCC) who have failed prior systemic therapy. It was approved by the FDA on March 10, 2021. Tivozanib is marketed by Aveo Oncology and is a promising treatment for RCC patients who have failed other therapies. Tivozanib is a kinase inhibitor. The mechanism of action of tivozanib is as a tyrosine kinase inhibitor. Tivozanib is a small molecule multi-kinase inhibitor used to treat relapsed or refractory renal cell carcinoma. Transient and mild elevations in serum transaminases are common during tevozanib treatment, but no cases have been reported associated with clinically significant acute liver injury. Tevozanib is an orally bioavailable inhibitor of vascular endothelial growth factor receptors (VEGFR) 1, 2, and 3 with potential anti-angiogenic and antitumor activity. Tevozanib binds to and inhibits the activity of VEGFR 1, 2, and 3, which may lead to suppression of endothelial cell migration and proliferation, inhibition of tumor angiogenesis, and tumor cell death. VEGFR tyrosine kinases are frequently overexpressed in various tumor cell types and play a key role in angiogenesis. See also: tevozanib hydrochloride (salt form); tevozanib anhydrous hydrochloride (its active ingredient). Drug Indications Tevozanib is approved in the United States for the treatment of adult patients with relapsed or refractory renal cell carcinoma who have received two or more prior systemic therapies. In the UK and other countries, tevozarib is approved as a first-line treatment for adult patients with advanced renal cell carcinoma (RCC) whose disease has progressed after prior cytokine therapy and who have not received VEGFR and mTOR pathway inhibitors. Fosetida is also approved as a first-line treatment for adult patients with advanced RCC whose disease has progressed after prior cytokine therapy and who have not received VEGFR and mTOR pathway inhibitors. Treatment of advanced renal cell carcinoma. Mechanism of Action: VHL mutation-HIF upregulation-VEGF transcription is a major pathway in the growth of renal cell carcinoma. Vascular endothelial growth factor receptor (VEGFR receptor) is an important target for tyrosine kinase inhibitors, which can inhibit tumor growth. Tevozarib is a tyrosine kinase inhibitor whose mechanism of action is by inhibiting the phosphorylation of vascular endothelial growth factor receptor (VEGFR)-1, VEGFR-2, and VEGFR-3, and by inhibiting other kinases, such as c-kit and platelet-derived growth factor β (PDGFRβ). The above-mentioned effects can inhibit tumor growth and progression, thereby treating renal cell carcinoma. Vascular endothelial growth factor (VEGF) plays a crucial role in tumor angiogenesis by activating the VEGF receptor (VEGFR) tyrosine kinase, stimulating the pro-angiogenic signaling pathway in endothelial cells. Therefore, VEGFR is a highly attractive target in cancer therapy. In this study, we discovered that the quinoline-urea derivative KRN951 is a novel VEGFR tyrosine kinase inhibitor with anti-tumor angiogenesis and anti-tumor growth activities. KRN951 effectively inhibited VEGF-induced VEGFR-2 phosphorylation in endothelial cells with a sub-nanomolar IC50 value (IC50 = 0.16 nmol/L). It also inhibited ligand-induced phosphorylation of platelet-derived growth factor receptor β (PDGFR-β) and c-Kit (IC50 values of 1.72 and 1.63 nmol/L, respectively). KRN951 blocked VEGF-dependent mitogen-activated protein kinase activation and endothelial cell proliferation, but had no effect on VEGF-independent mitogen-activated protein kinase activation and endothelial cell proliferation. Furthermore, it inhibited VEGF-mediated migration of human umbilical vein endothelial cells. Following oral administration to athymic rats, KRN951 reduced microvessel density and attenuated VEGFR-2 phosphorylation levels in tumor endothelial cells. It also demonstrated antitumor activity in various human tumor xenograft models, including lung cancer, breast cancer, colon cancer, ovarian cancer, pancreatic cancer, and prostate cancer. Moreover, dynamic contrast-enhanced magnetic resonance imaging (DCE-MRI) analysis showed that a significant reduction in tumor vascular permeability was closely associated with the antitumor activity of KRN951. These findings suggest that KRN951 is a potent drug with anti-angiogenic and antitumor activity, and that DCE-MRI can be used to detect the early efficacy of KRN951 in a clinical setting. KRN951 is currently in Phase I clinical development for the treatment of patients with advanced cancer. [1] We evaluated the antitumor efficacy of KRN951 (a novel vascular endothelial growth factor receptor tyrosine kinase inhibitor) using a rat colon cancer RCN-9 homology model. In this model, tumor cells were transplanted into the peritoneal cavity of F344 rats. KRN951 treatment initiated on day 4 post-transplantation (day 4) significantly inhibited tumor-induced angiogenesis, formation of tumor nodules within the mesenteric window, and accumulation of malignant ascites. Furthermore, KRN951 treatment initiated on day 14 (when angiogenesis and malignant ascites had largely formed) led to the regression of abnormal neovascularization and significant disappearance of malignant ascites by the end of the study. Quantitative analysis of mesenteric window vascular structures showed that KRN951 not only regressed tumor-induced neovascularization but also restored it to normal. Compared with the carrier control group, continuous daily administration of KRN951 significantly prolonged the survival of rats with early and late-stage tumors. Our current findings suggest that KRN951 inhibits the progression of intraperitoneal colon cancer and prolongs patient survival by suppressing tumor angiogenesis, ascites formation, and tumor spread. Furthermore, these studies clearly demonstrate that KRN951 has a therapeutic effect on established abdominal tumors, including the regression and normalization of tumor angiogenesis. Therefore, our findings suggest that KRN951 has great potential as a future treatment for peritoneal cancer with ascites. [2]

C22H22CL2N4O6

509.339283466339

508.092

682745-41-1

Tivozanib;475108-18-0; 682745-40-0 (hydrate); 682745-41-1 (HCl hydrate)

11547978

White to off-white solid powder

5.811

123.69

4

8

6

34

631

0

RQXMKRRBJITKRN-UHFFFAOYSA-N

InChI=1S/C22H19ClN4O5.ClH.H2O/c1-12-8-21(27-32-12)26-22(28)25-16-5-4-13(9-15(16)23)31-18-6-7-24-17-11-20(30-3)19(29-2)10-14(17)18;;/h4-11H,1-3H3,(H2,25,26,27,28);1H;1H2

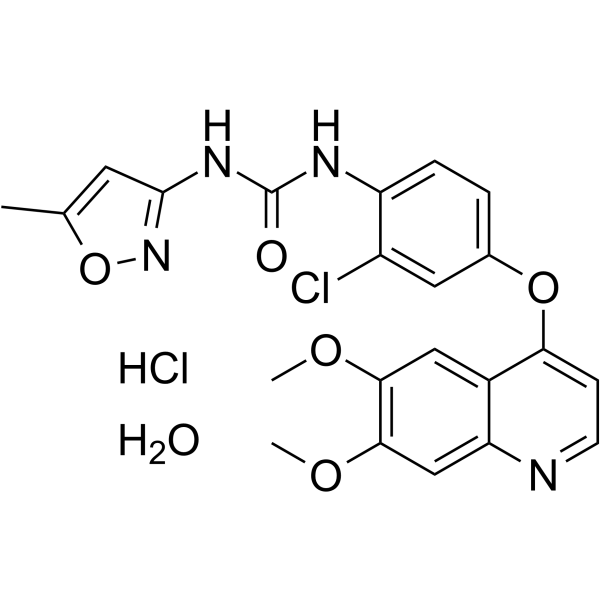

1-[2-chloro-4-(6,7-dimethoxyquinolin-4-yl)oxyphenyl]-3-(5-methyl-1,2-oxazol-3-yl)urea;hydrate;hydrochloride

TIVOZANIB HYDROCHLORIDE; 682745-41-1; Tivozanib HCl hydrate; Tivozanib hydrochloride hydrate; UNII-8A9H4VK35Z; fotivda; 8A9H4VK35Z; Tivozanib hydrochloride [USAN];

2934.99.9001

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

注意： 请将本产品存放在密封且受保护的环境中（例如氮气保护），避免吸湿/受潮和光照。

Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

DMSO : ~250 mg/mL (~490.83 mM)

注意: 如下所列的是一些常用的体内动物实验溶解配方，主要用于溶解难溶或不溶于水的产品（水溶度<1 mg/mL）。 建议您先取少量样品进行尝试，如该配方可行，再根据实验需求增加样品量。

---

注射用配方1: DMSO : Tween 80： Saline = 10 : 5 : 85 (如： 100 μL DMSO → 50 μL Tween 80 → 850 μL Saline)
*生理盐水/Saline的制备：将0.9g氯化钠/NaCl溶解在100 mL ddH ₂ O中，得到澄清溶液。
注射用配方 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (如： 100 μL DMSO → 400 μL PEG300 → 50 μL Tween 80 → 450 μL Saline)
注射用配方 3: DMSO : Corn oil = 10 : 90 (如： 100 μL DMSO → 900 μL Corn oil)
示例: 以注射用配方 3 (DMSO : Corn oil = 10 : 90) 为例说明, 如果要配制 1 mL 2.5 mg/mL的工作液, 您可以取 100 μL 25 mg/mL 澄清的 DMSO 储备液，加到 900 μL Corn oil/玉米油中, 混合均匀。

View More

注射用配方 4: DMSO : 20% SBE-β-CD in Saline = 10 : 90 [如：100 μL DMSO → 900 μL (20% SBE-β-CD in Saline)]
*20% SBE-β-CD in Saline的制备（4°C，储存1周）：将2g SBE-β-CD (磺丁基-β-环糊精) 溶解于10mL生理盐水中，得到澄清溶液。
注射用配方 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (如： 500 μL 2-Hydroxypropyl-β-cyclodextrin (羟丙基环胡精)→ 500 μL Saline)
注射用配方 6: DMSO : PEG300 : Castor oil : Saline = 5 : 10 : 20 : 65 (如： 50 μL DMSO → 100 μL PEG300 → 200 μL Castor oil → 650 μL Saline)
注射用配方 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (如： 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline)
注射用配方 8: 溶解于Cremophor/Ethanol (50 : 50), 然后用生理盐水稀释。
注射用配方 9: EtOH : Corn oil = 10 : 90 (如： 100 μL EtOH → 900 μL Corn oil)
注射用配方 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (如： 100 μL EtOH → 400 μL PEG300 → 50 μL Tween 80 → 450 μL Saline)

---

口服配方 1: 悬浮于0.5% CMC Na (羧甲基纤维素钠)
口服配方 2: 悬浮于0.5% Carboxymethyl cellulose (羧甲基纤维素)
示例: 以口服配方 1 (悬浮于 0.5% CMC Na)为例说明, 如果要配制 100 mL 2.5 mg/mL 的工作液, 您可以先取0.5g CMC Na并将其溶解于100mL ddH2O中，得到0.5%CMC-Na澄清溶液；然后将250 mg待测化合物加到100 mL前述 0.5%CMC Na溶液中，得到悬浮液。

View More

口服配方 3: 溶解于 PEG400 (聚乙二醇400)
口服配方 4: 悬浮于0.2% Carboxymethyl cellulose (羧甲基纤维素)
口服配方 5: 溶解于0.25% Tween 80 and 0.5% Carboxymethyl cellulose (羧甲基纤维素)
口服配方 6: 做成粉末与食物混合

---

注意: 以上为较为常见方法，仅供参考， InvivoChem并未独立验证这些配方的准确性。具体溶剂的选择首先应参照文献已报道溶解方法、配方或剂型，对于某些尚未有文献报道溶解方法的化合物，需通过前期实验来确定（建议先取少量样品进行尝试），包括产品的溶解情况、梯度设置、动物的耐受性等。

---

请根据您的实验动物和给药方式选择适当的溶解配方/方案：
1、请先配制澄清的储备液(如：用DMSO配置50 或 100 mg/mL母液(储备液));
2、取适量母液，按从左到右的顺序依次添加助溶剂，澄清后再加入下一助溶剂。以 下列配方为例说明 (注意此配方只用于说明，并不一定代表此产品 的实际溶解配方):
10% DMSO → 40% PEG300 → 5% Tween-80 → 45% ddH2O (或 saline);
假设最终工作液的体积为 1 mL, 浓度为5 mg/mL: 取 100 μL 50 mg/mL 的澄清 DMSO 储备液加到 400 μL PEG300 中，混合均匀/澄清；向上述体系中加入50 μL Tween-80，混合均匀/澄清；然后继续加入450 μL ddH2O (或 saline)定容至 1 mL；
3、溶剂前显示的百分比是指该溶剂在最终溶液/工作液中的体积所占比例;
4、 如产品在配制过程中出现沉淀/析出，可通过加热(≤50℃)或超声的方式助溶;
5、为保证最佳实验结果，工作液请现配现用！
6、如不确定怎么将母液配置成体内动物实验的工作液，请查看说明书或联系我们;
7、 以上所有助溶剂都可在 Invivochem.cn网站购买。
